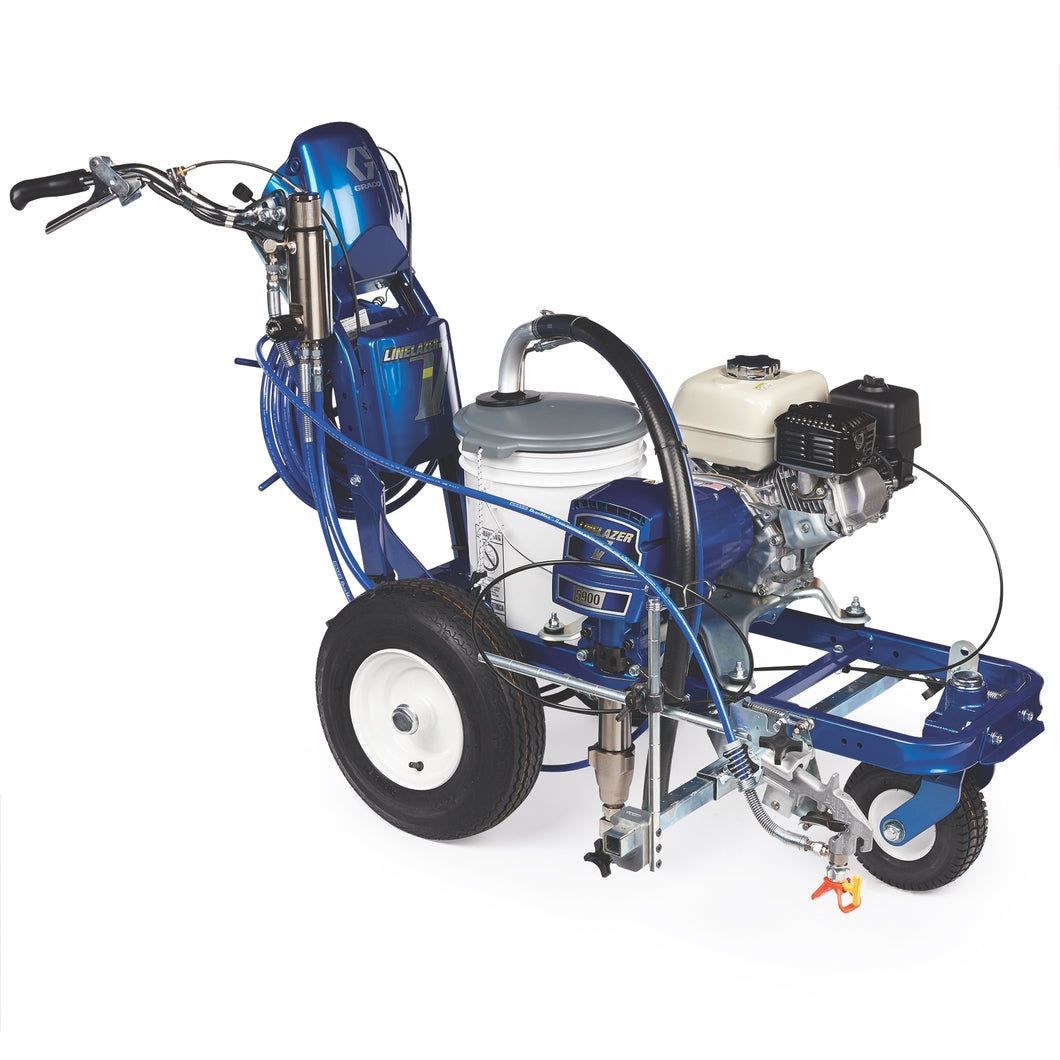

LineLazer V 5900 Standard Series Gas Airless Line Striper, 1 Manual Gun

LineLazer V 5900 Standard Series Gas Airless Line Striper, 1 Manual Gun

Regular price
$18,670.00
Sale price
$18,670.00
Quantity must be 1 or more


When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • QuikSelect Gun Selector
    • Simple Gun Control
    • Independently control of two guns with one lever — solid/skip
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
UPC Product: 00755652320012
Family Code: FAMLNS
Unit of Measure: EA
Height: 51 IN   |  129.54 CM
Length: 74 IN   |  187.96 CM
Width: 39 IN   |  99.06 CM
Volume: 85.177 FT3   |  2.412 M3
Chargeable Weight: 886.663 LBS  | 401.992 KG

Technical Specifications

Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX160
Fuel Tank Capacity (gal) 0.95
Fuel Tank Capacity (L) 3.6
Gun Activation Manual
Includes 喷嘴, チップ, Tips, Boquillas, 팁, 喷嘴座, ガード, Guard, protector, 가드, 喷枪, ガン, Gun, pistola, 건, 软管, ホース, Hose, manguera, 호스, 泵过滤器, ポンプフィルター, Pump Filter, filtro de bomba, 펌프 필터, 喉部密封液, TSL, TSL, TSL, TSL
Maximum Flow Rate (GPM) 1.6
Maximum Flow Rate (L/min) 6
Maximum Sound Pressure Level (dB(A)) 87.1
Maximum Tip Size (cm) 0.1092
Maximum Tip Size (in) 0.043
Maximum Tip Size (mm) 1.0922
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 1
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (in) 44.5
Overall Height (mm) 1130.3000
Overall Length (cm) 173.36
Overall Length (in) 68.25
Overall Length (mm) 1733.55
Overall Width (cm) 87
Overall Width (in) 34.25
Overall Width (mm) 869.9500
Power Rating (HP) 5.5
Power Rating (kW) 4.1
Pump Type Endurance
Series 5900
Compatible Material Road-Marking Paint
Weight (kg) 113
Weight (lb) 250
Type Walk-Behind Line Striper
Power Source Gas
Product Series Standard
