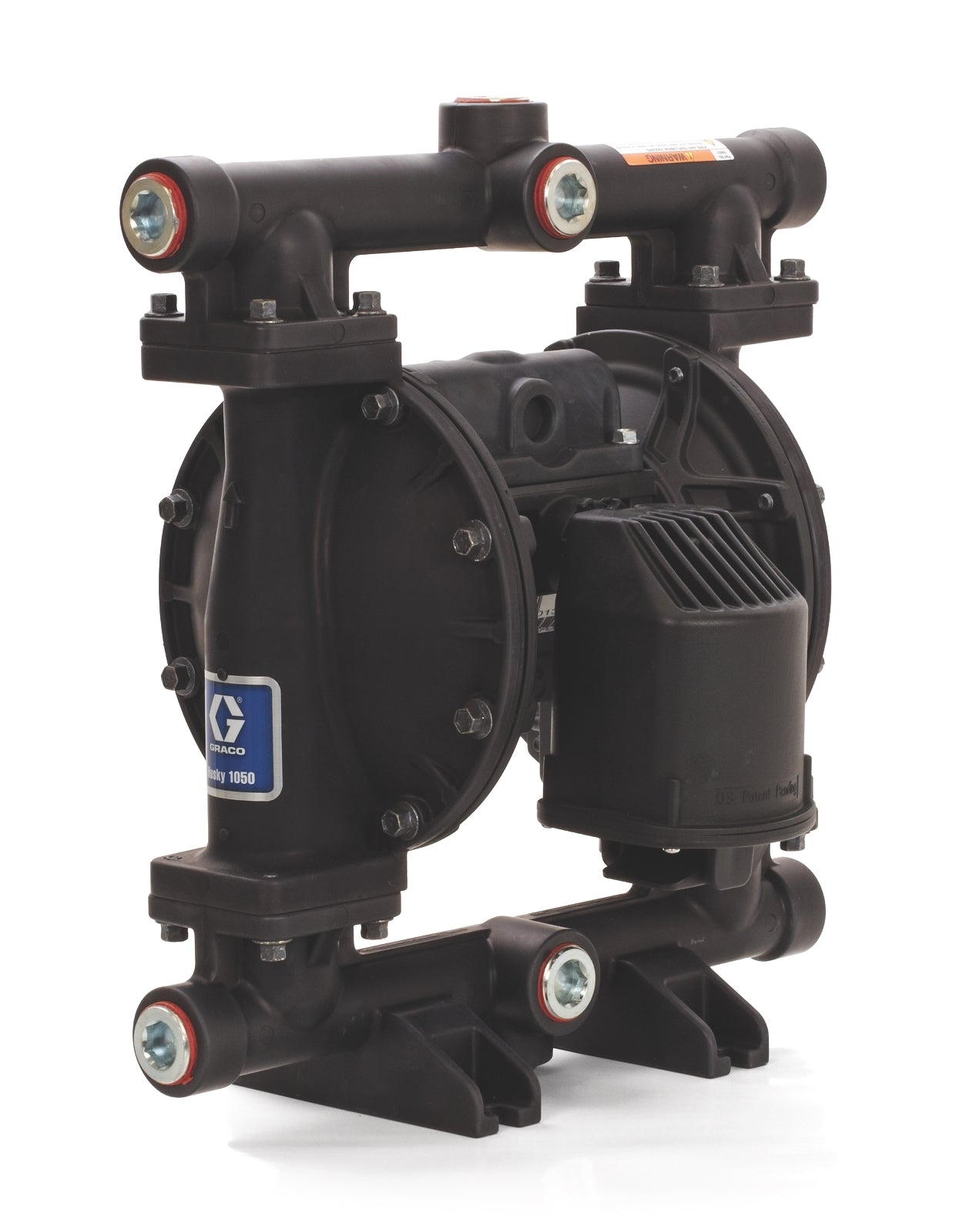

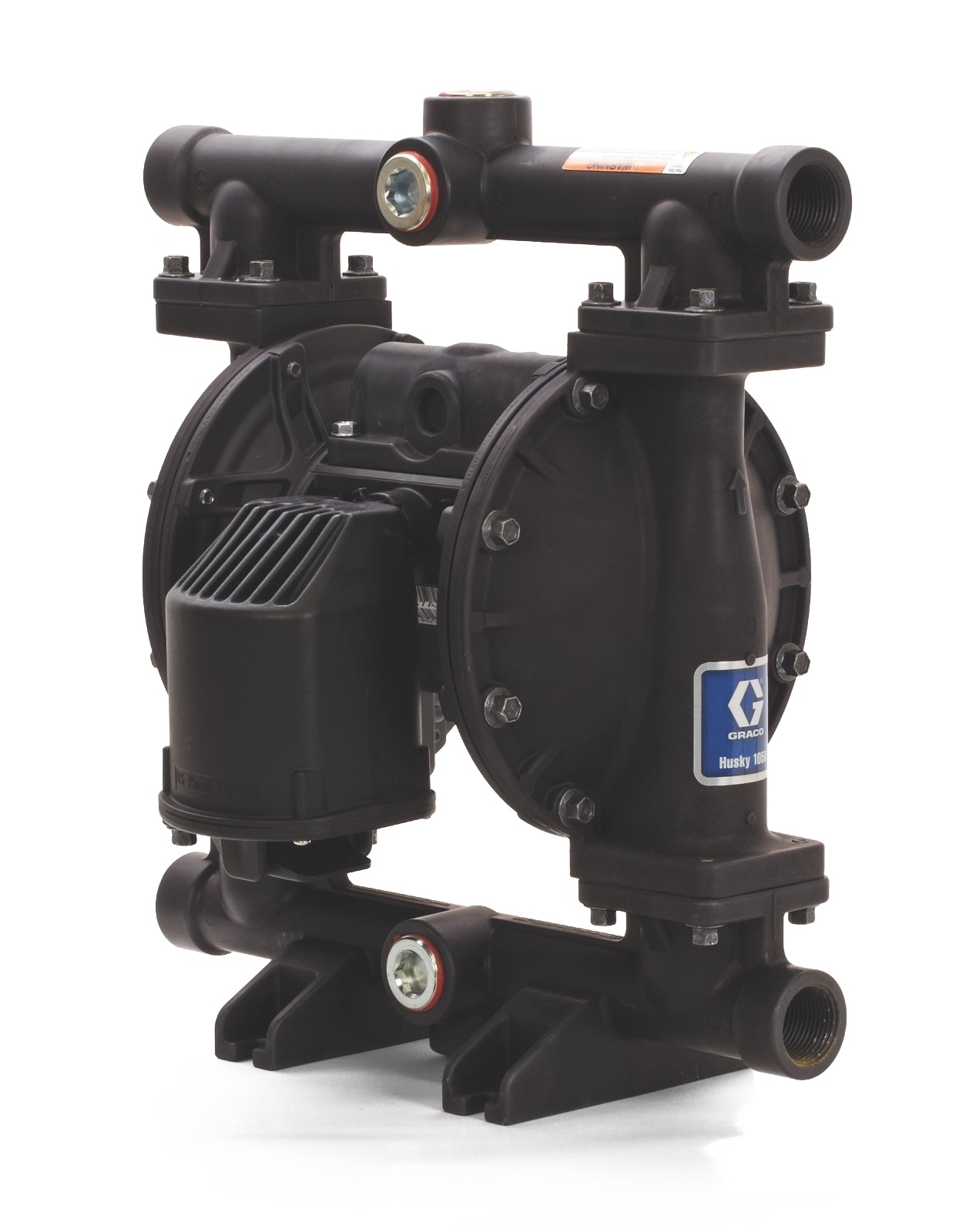

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
- Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
- Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
- One-Piece Centre Section - Eliminates air leaks for more efficient operation
- Multiple Ports - Increased number of ports for installation flexibility
- Optional Features - DataTrak™ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
- Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
- 30% more efficient than the market leader
- Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
- 20% increase in fluid flow compared to the Husky 1040
UPC Product: 00633955648050
Family Code: FAMPDI
Unit of Measure: EA
Height:
0 IN
| 0 CM
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
75.15 LBS
| 34.09 KG
Technical Specifications
| Application | Industrial |
|---|---|
| Compatible Material | Antifreeze, Windshield Washer Fluid |
| Fluid Inlet Size (cm) | 2.5400 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | 防冻剂，挡风玻璃溶剂, Anti-Freeze, Windshield Solvent, Anti-Freeze, Windshield Solvent, Antigel, solvant pour pare-brise, 부동액, 윈드실드 솔벤트, Frostschutzmittel, Windschutzscheiben-Lösungsmittel, Antivries, voorruitoplosmiddel |
| Includes | 1050 AODD 泵, 1050 AODD Pump, 1050 AODD Pump, Pompe AODD 1050 , 1050 AODD 펌프, 1050 Luftbetriebene Doppelmembran-Pumpe, Druckluftregler, Materialanschlussschlauch, Druckluftverbindungsschlauch, Druckluftabsperrventil, Wandmontagewinkel, Ansaug-Satz, 1050 AODD-pomp, 空气调压阀, Air Regulator, Air Regulator, régulateur d’air , 에어 레귤레이터, thermischer Entlastungssatz, luchtregelaar, 流体连接软管, Fluid Connect Hose, Fluid Connect Hose, flexible de raccordement du fluide , 유체 연결 호스, vloeistofverbindingsslang, 空气连接软管, Air Connect Hose, Air Connect Hose, flexible de raccordement d’air , 에어 연결 호스, luchtverbindingsslang, 空气截止阀, Air Shut-Off Valve, Air Shut-Off Valve, vanne d’arrêt d’air , 에어 차단 밸브, luchtafsluitklep, 壁式支架, Wall Mount Bracket, Wall Mount Bracket, support pour montage mural , 벽 장착형 브래킷, wandmontagebeugel, 吸料配件包, Suction Kit, Suction Kit, kit d’aspiration , 흡입 키트, aanzuigset, 散热盘配件包, Thermal Relief Kit, Thermal Relief Kit, kits de décompression thermique, 열 부하 경감 키트, thermische ontlastingsset |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Aluminum, Buna-N |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 70 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 50 |
| Maximum Fluid Pressure (bar) | 8.3 |
| Maximum Fluid Pressure (kPa) | 83 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.175 |
| Series | 1050 |
| Type | Diaphragm Pump Package |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Diaphragm Material | Thermoplastic Polyester Elastomer |
| Ball Material | Acetal |
| Model | Husky |
