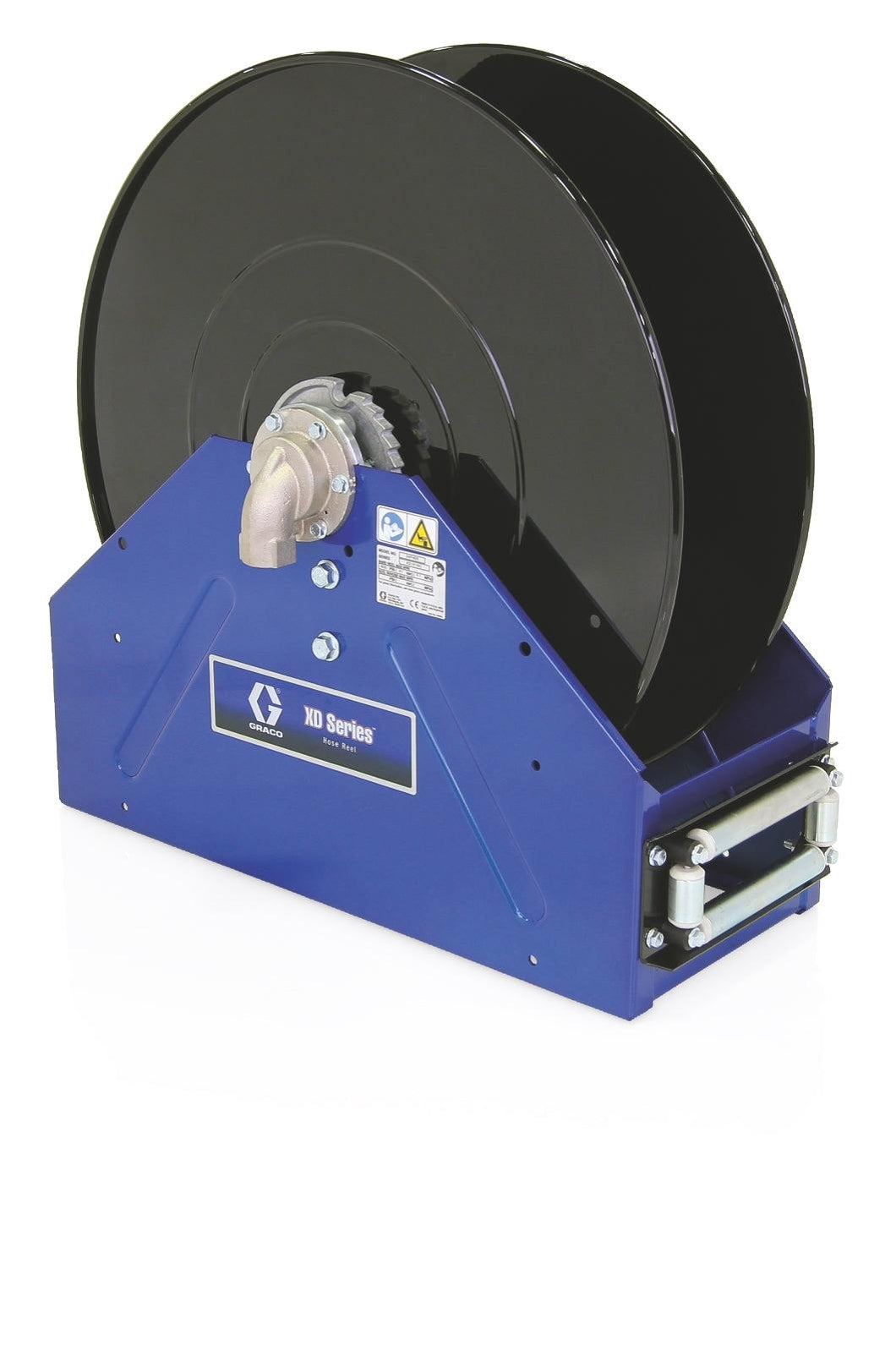

Graco XD50™, Antifreeze, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 100 ft. (25 mm X 30 m) Capacity), NPT, White

Graco XD50™, Antifreeze, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 100 ft. (25 mm X 30 m) Capacity), NPT, White

Regular price
$2,350.00
Sale price
$2,350.00
Quantity must be 1 or more


Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
UPC Product: 00755652366270
Family Code: FAMXD4
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Color White
Dry Weight (lb) 162
Hose Inside Diameter (in) 1
Hose Inside Diameter (mm) 25.4
Hose Length (ft) 100
Hose Length (m) 30
Inlet Size (in) 1
Inlet Size (mm) 25.4
Inlet Thread Type NPT
Maximum Working Pressure (psi) 600
Outlet Size (in) 1
Outlet Size (mm) 25.4
Overall Height (in) 30.13
Overall Height (mm) 765
Overall Length (in) 29.4
Overall Length (mm) 747
Overall Width (in) 17.47
Overall Width (mm) 444
Series 50
Application Antifreeze
Type Spring-Rewind Reel
Recommended Environment Indoor, Outdoor
Frame Type Box Frame
Bare Reel 1
Reel Thread Type NPT
Recommended Fluid Type Antifreeze, Anticongelante
Hose Reel Type Bare Reel
Model XD
includes_hose No
