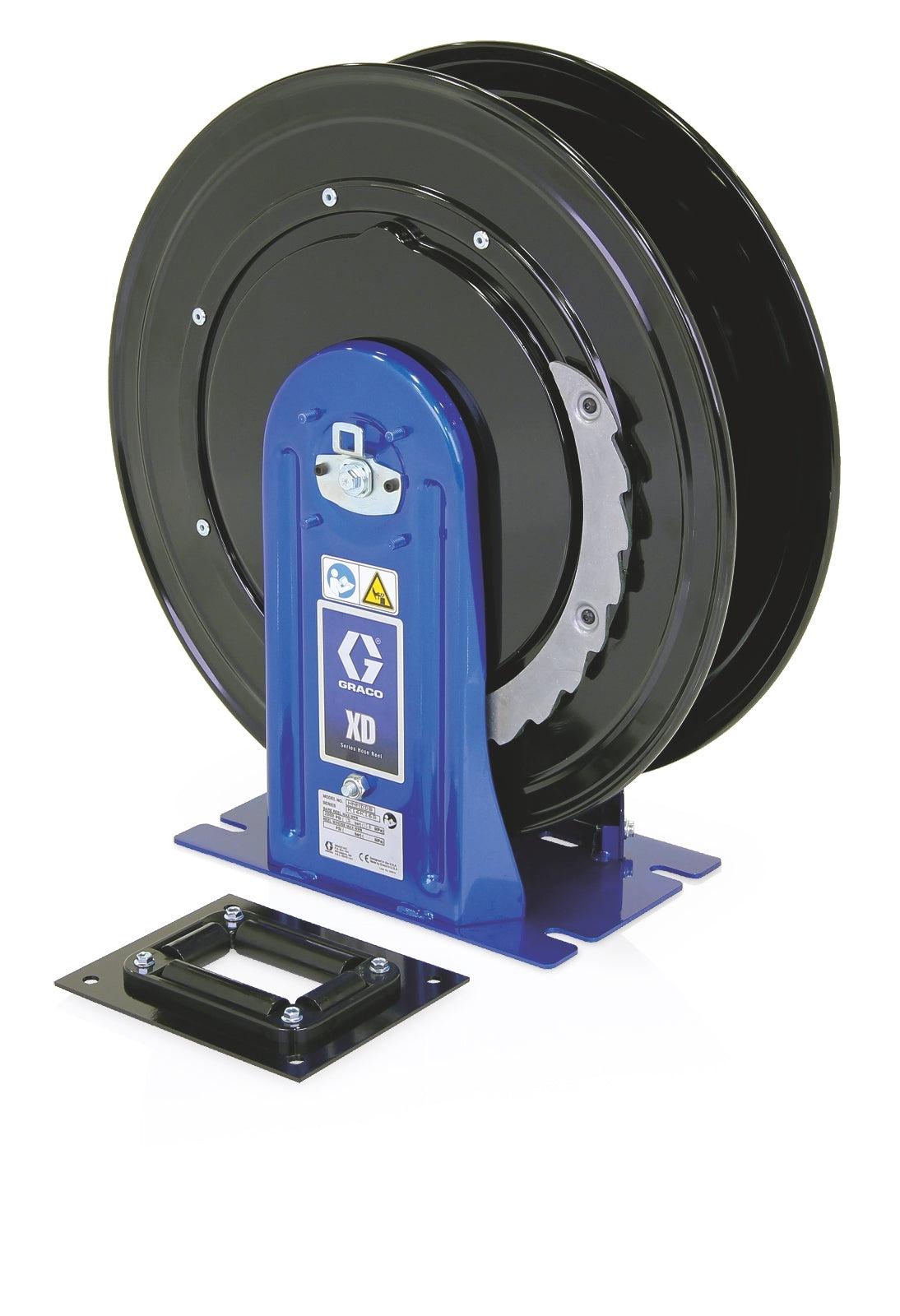

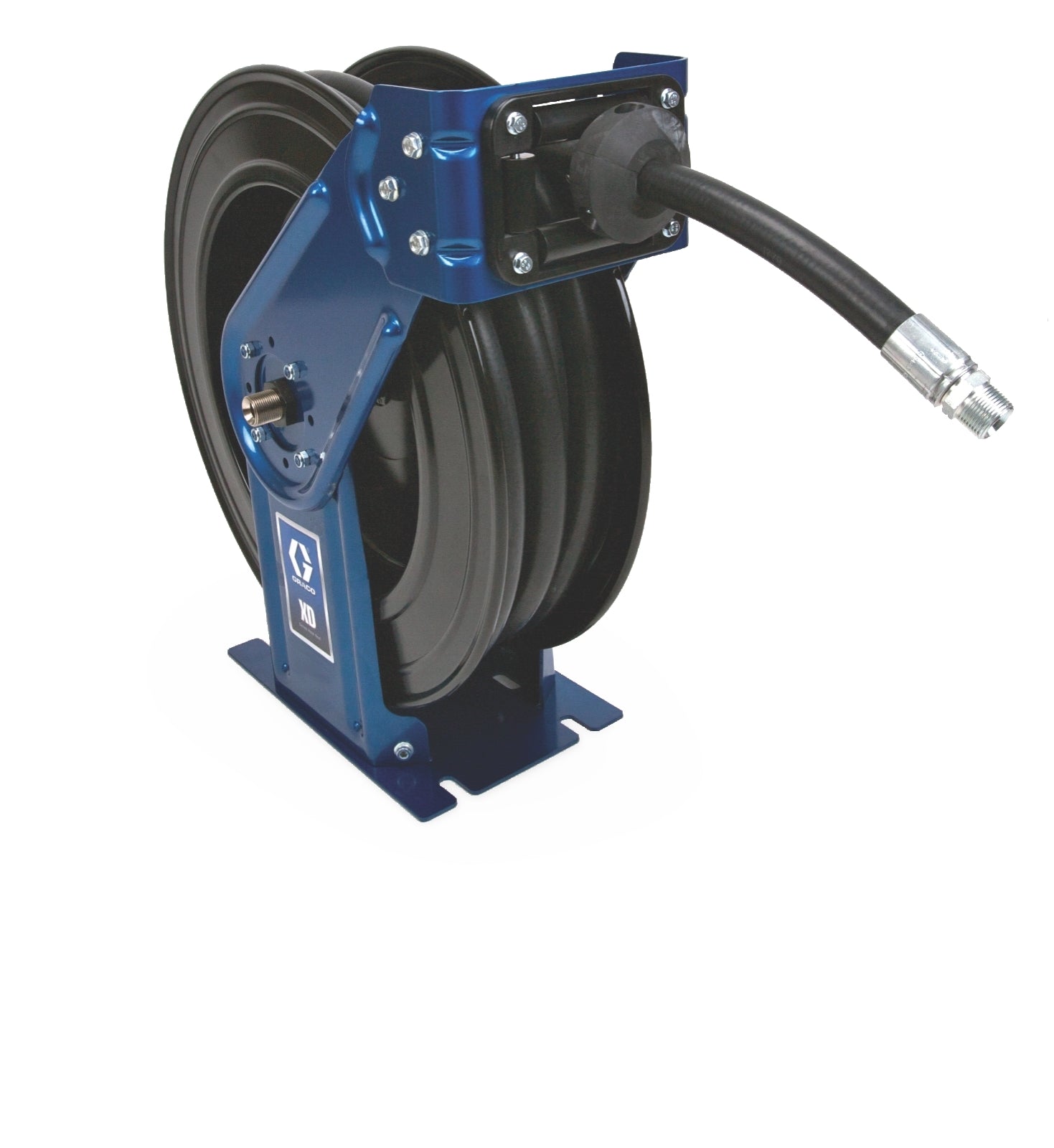

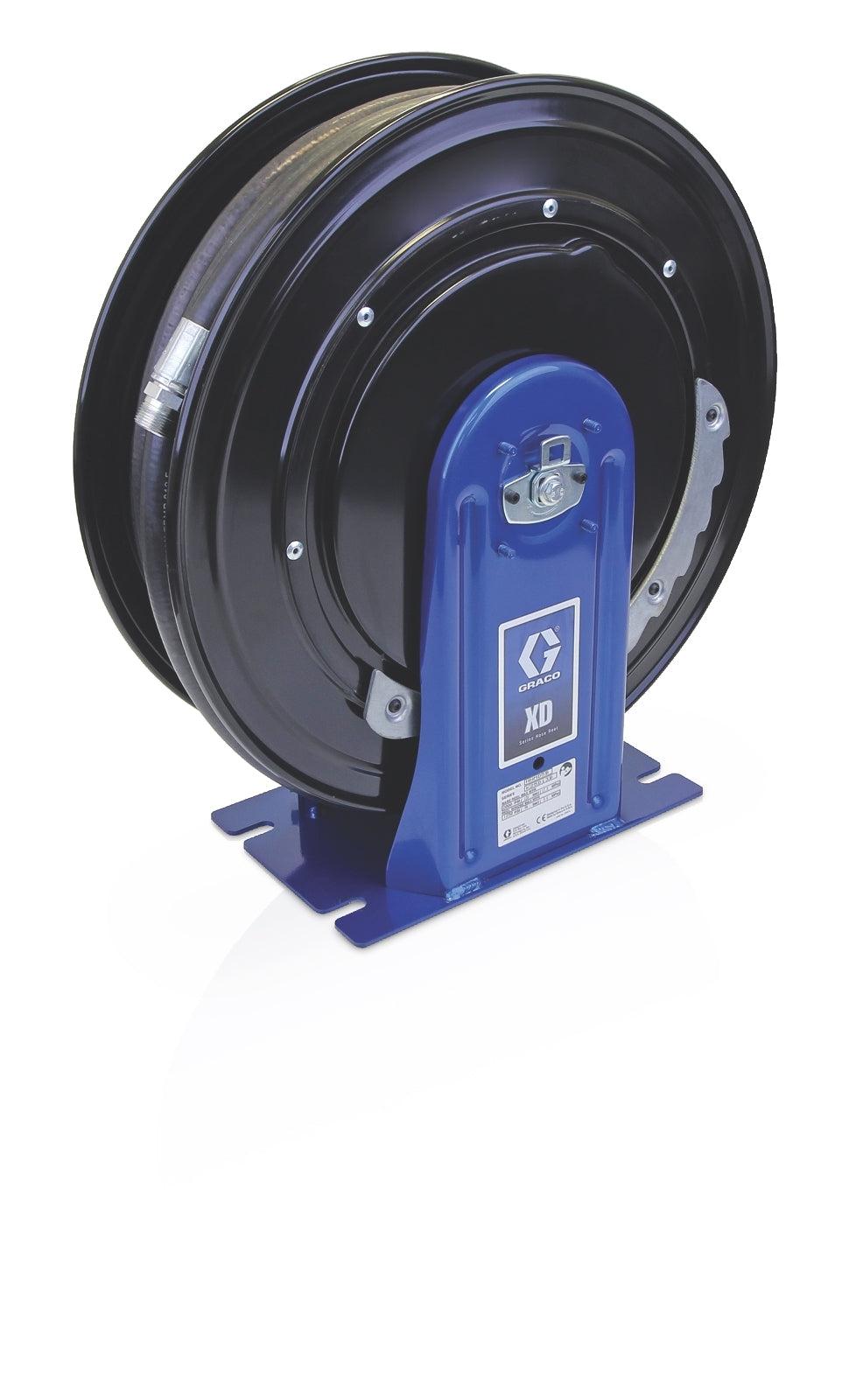

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 9.1-22.8 m (30-75 ft) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
Spring Adjustment - Increase or decrease spring tension while reel is pressurised with fluid
Full-Flow Swivel - Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
Durable Finish - Baked-on enamel finish protects reel from corrosion
Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 91-228 m (30-75 ft) hose capacity for a wide variety of applications
Specifications
UPC Product: 00633955547353
Family Code: FAMXD3
Unit of Measure: EA
Height:
26.4 IN
| 67.056 CM
Length:
25.2 IN
| 64.008 CM
Width:
10.8 IN
| 27.432 CM
Volume:
4.158 FT3
| .118 M3
Chargeable Weight:
104 LBS
| 47.17 KG
Technical Specifications
Color
Metallic Blue
Dry Weight (lb)
98
Hose Inside Diameter (in)
3/8
Hose Inside Diameter (mm)
9.525
Hose Length (ft)
75
Hose Length (m)
23
Inlet Size (in)
1/2
Inlet Size (mm)
12.7
Inlet Thread Type
NPSM
Maximum Working Pressure (psi)
4000
Mount Location
Truck Mount, Bench Mount
Outlet Size (in)
3/8
Outlet Size (mm)
9.525
Overall Height (in)
23.10
Overall Height (mm)
588
Overall Length (in)
22.12
Overall Length (mm)
561.73
Overall Width (in)
9
Overall Width (mm)
229
Series
30
Application
Pressure Wash
Type
Spring-Rewind Reel
Recommended Environment
Indoor, Outdoor
Frame Type
Dual Pedestal
Reel Thread Type
NPT
Recommended Fluid Type
压力清洗, 高圧洗浄, Pressure Wash, Pressure Wash, Lavage sous pression, Lavado a presión, Hochdruckreiniger, Hogedrukreiniger, Lavaggio a pressione
