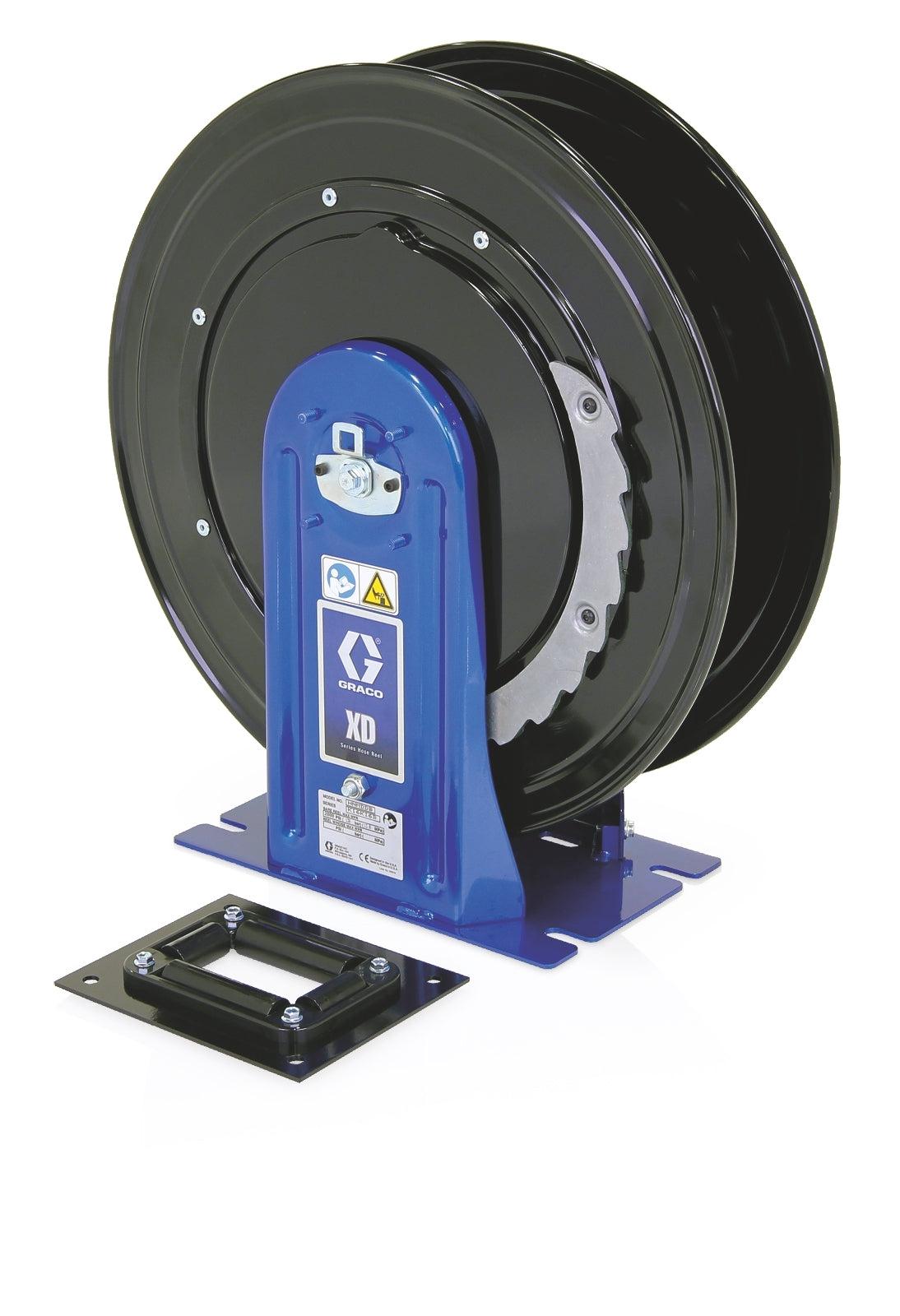

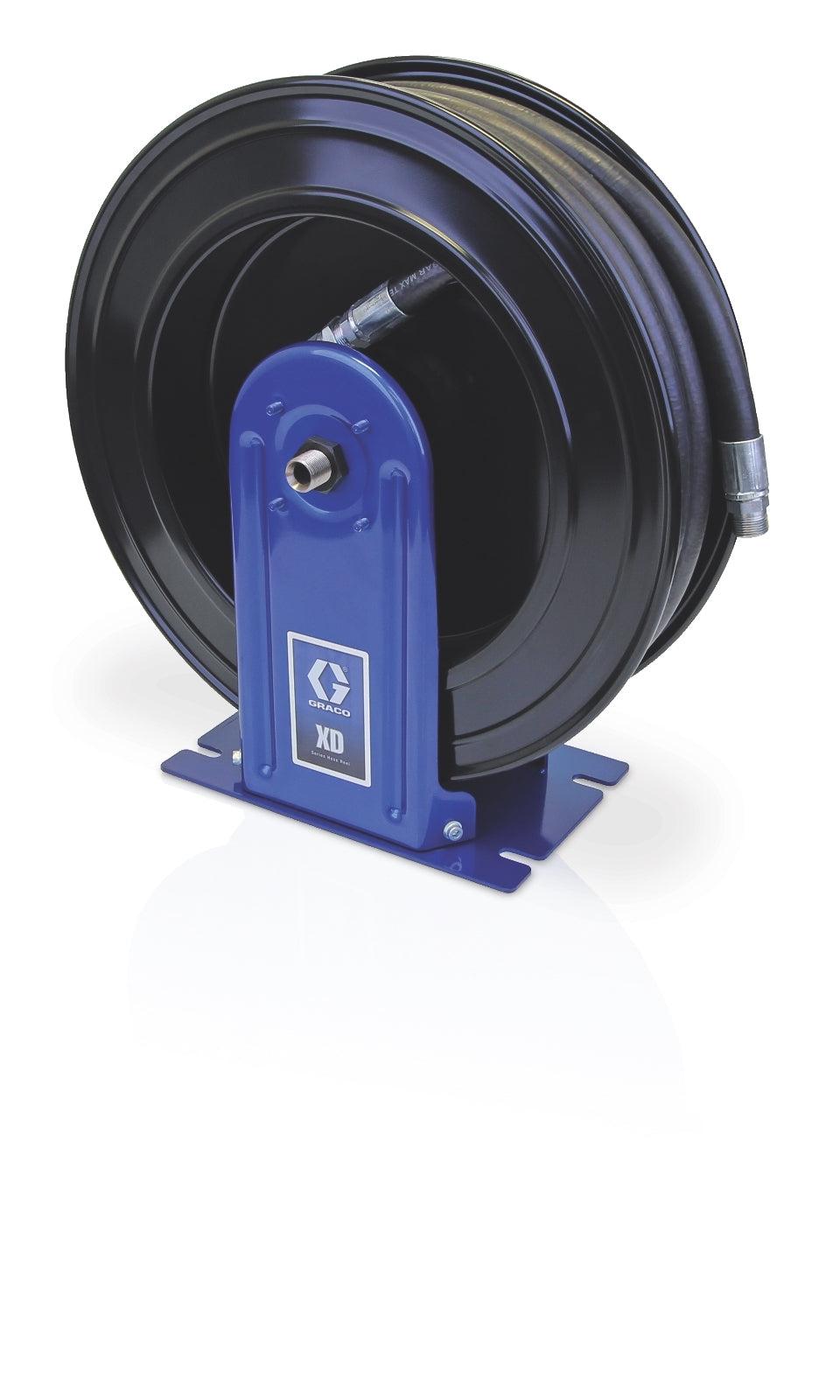

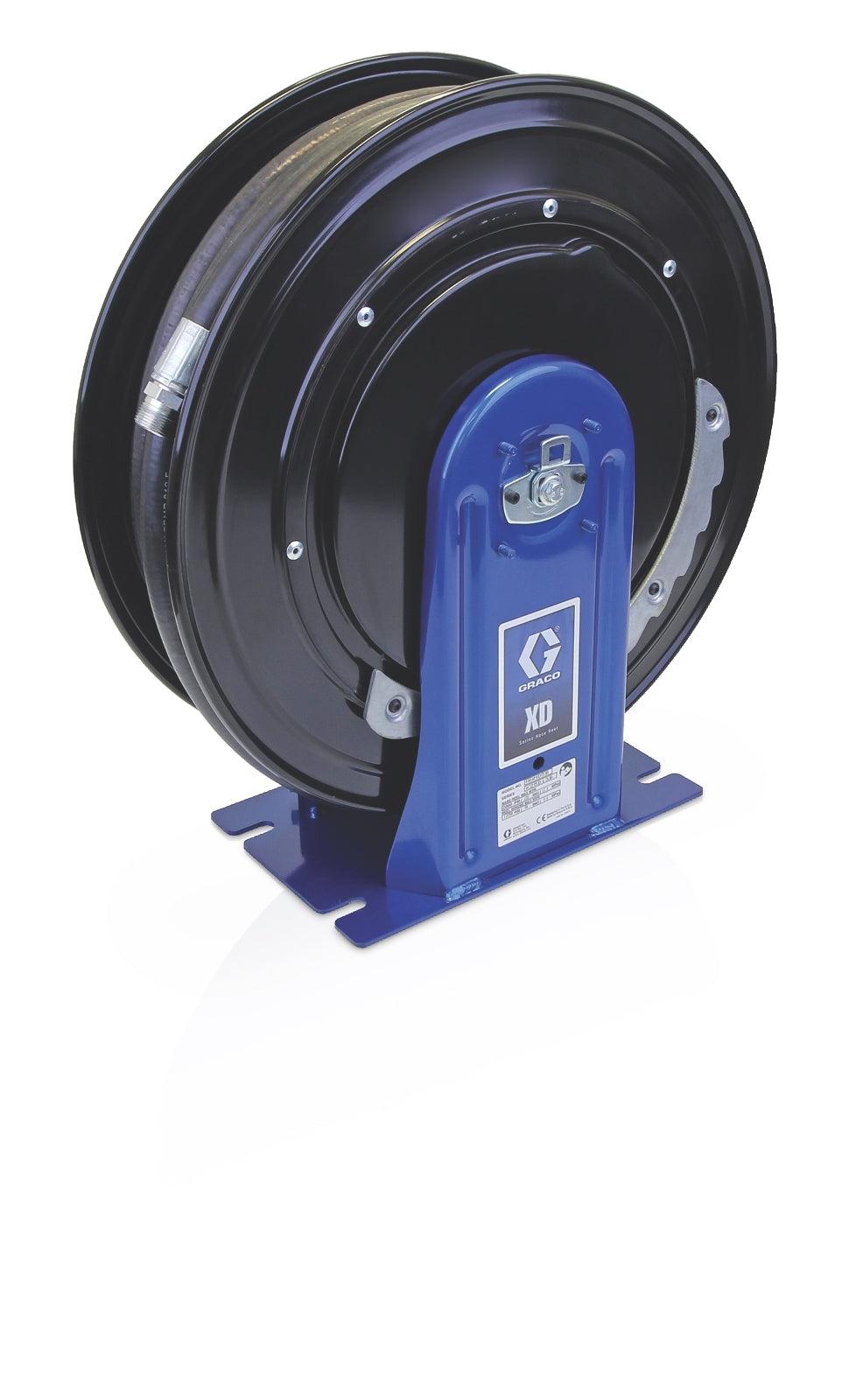

Graco XD30™, DEF, 19 mm (3/4 in.) Inlet, Bare Reel (19 mm X 15 m (3/4 in. X 50 ft) Capacity), NPT, Truck/Bench Mount, Metallic Blue
Graco XD30™, DEF, 19 mm (3/4 in.) Inlet, Bare Reel (19 mm X 15 m (3/4 in. X 50 ft) Capacity), NPT, Truck/Bench Mount, Metallic Blue
Graco XD30™, DEF, 19 mm (3/4 in.) Inlet, Bare Reel (19 mm X 15 m (3/4 in. X 50 ft) Capacity), NPT, Truck/Bench Mount, Metallic Blue

Graco XD30™, DEF, 19 mm (3/4 in.) Inlet, Bare Reel (19 mm X 15 m (3/4 in. X 50 ft) Capacity), NPT, Truck/Bench Mount, Metallic Blue

Regular price
$1,940.00
Sale price
$1,940.00
Quantity must be 1 or more


Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 9.1-22.8 m (30-75 ft) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurised with fluid
  • Full-Flow Swivel - Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 91-228 metres (30-75 ft) hose capacity for a wide variety of applications
UPC Product: 00633955153943
Family Code: FAMXD3
Unit of Measure: EA
Height: 64.008 CM   |  25.2 IN
Length: 26.4 IN   |  67.056 CM
Width: 10.8 IN   |  27.432 CM
Volume: 4.158 FT3   |  .118 M3
Chargeable Weight: 95 LBS  | 43.09 KG

Technical Specifications

Color Metallic Blue
Hose Inside Diameter (in) 3/4
Hose Inside Diameter (mm) 19.05
Hose Length (ft) 50
Hose Length (m) 15
Inlet Size (in) 3/4
Inlet Size (mm) 19.05
Inlet Thread Type BSPP
Maximum Working Pressure (psi) 50
Mount Location Truck Mount, Bench Mount
Outlet Size (in) 3/4
Outlet Size (mm) 19.05
Overall Height (in) 23.10
Overall Height (mm) 588
Overall Length (in) 22.12
Overall Length (mm) 561.73
Overall Width (in) 9
Overall Width (mm) 229
Series 30
Application Diesel Fuel
Type Spring-Rewind Reel
Recommended Environment Indoor, Outdoor
Frame Type Enclosed
Bare Reel 1
Reel Thread Type NPT
Recommended Fluid Type DEF, DEF, DEF, DEF, DEF, DEF, DEF, DEF, DEF
Hose Reel Type Bare Reel
Model XD
includes_hose No
