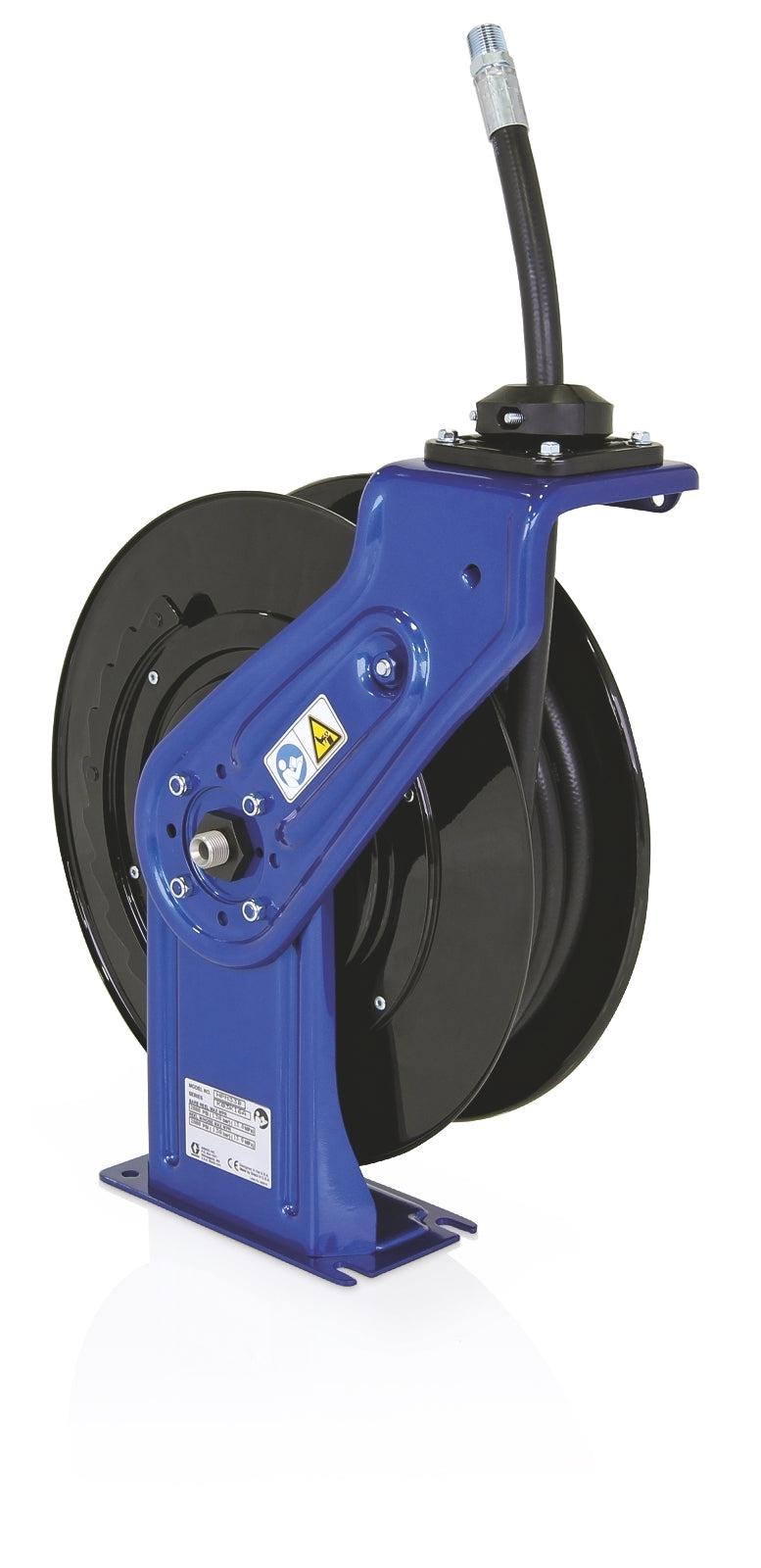

Graco SD™ 10 Package, Oil, 1/2 in. (13 mm) Inlet, 1/2 in. X 35 ft. (13 mm X 11 m) Hose, NPT, Includes White Enclosure, Inlet Kit, & SDM5 Flexible Extension Meter

Graco SD™ 10 Package, Oil, 1/2 in. (13 mm) Inlet, 1/2 in. X 35 ft. (13 mm X 11 m) Hose, NPT, Includes White Enclosure, Inlet Kit, & SDM5 Flexible Extension Meter

Regular price
$2,200.00
Sale price
$2,200.00
Quantity must be 1 or more


The SD line of hose reels feature Graco durability, performance and value built into every reel. With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor exposure.

With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • SD Hose Reel Package - includes hose reel, hose inlet kit, enclosure and meter/valve
UPC Product: 00633955568198
Family Code: FAMSDR
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 CM   |  0 IN
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Color Metallic Blue
Dry Weight (lb) 52
Hose Inside Diameter (in) 1/2
Hose Inside Diameter (mm) 12.7
Hose Length (ft) 35
Hose Length (m) 11
Inlet Size (in) 1/2
Inlet Size (mm) 12.7
Inlet Thread Type NPSM
Maximum Temperature (°C) 87
Maximum Temperature (°F) 190
Maximum Working Pressure (psi) 2000
Minimum Temperature (°C) -28
Minimum Temperature (°F) -20
Outlet Size (in) 1/2
Outlet Size (mm) 12.7
Overall Height (in) 22.5
Overall Height (mm) 572
Overall Length (in) 21
Overall Length (mm) 533
Overall Width (in) 7
Overall Width (mm) 177
Series 10
Application Oil
Type Spring-Rewind Reel
Recommended Environment Indoor, Outdoor
Frame Type Enclosed
Reel Thread Type NPT
Inlet Thread Gender Male
Outlet Thread Gender Male
Recommended Fluid Type 机油, Oil
Hose Reel Type Reel Package
Model SD
