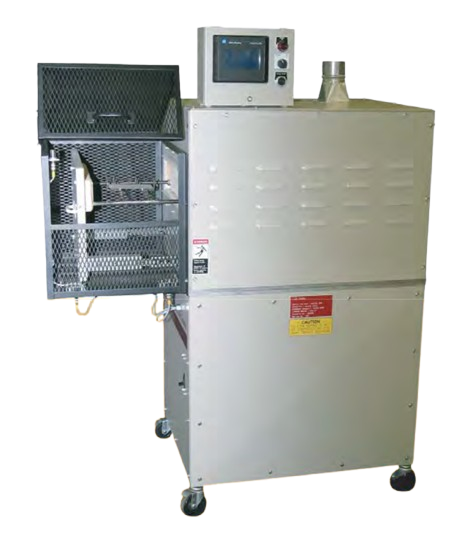

The IR Smart lab oven was designed to test your coatings and processes in your own facility. This oven will demonstrate the many benefits of electric infrared for drying and curing.
BGK created the IR Smart lab oven to provide valuable data to aid in the process development and support of your infrared curing customers. The oven is designed to provide an accurate and repeatable testing environment.
The IR Smart Difference
• Control
• Repeatability
• ± 2% Temperature Accuracy
• High Efficiency
BGK Electric Infrared Benefits:
• Direct Heat Transfer
• High-Efficiency (short ovens and operating costs)
• Instant Heat Output Control
• 0-100% Temperature Control
• Separate Zones (flexibility and energy savings)
• Self-Cleaning Interior
• No Pre-Heat
Primary Features:
• Independently Controllable Infrared Heat Zones
• Closed Loop Temperature Controls (PLC with operator interface screen)
• Built-in Pyrometer Temperature Sensor (calibration panels included)
• Four Modes of Operational Control
• Pre-Mounted Exhaust Blower
Optional Feature:
• Smart Logger – allows creation of data files to store or print test data
Specifications:
| Size | 43.25” W × 54.81” H × 33.0” D (1099mm × 1392mm × 838mm) |
| Weight | 425 pounds (193 Kg) |
| Test Panel Size | 10” × 14” (254mm × 356mm) Maximum |
| Heat Zones | Top and Bottom (controlled independently) |
| Operating Modes | Manual • Time/Power • Power/Temp • Time/Temp |
| Power | 480 / 3Ø / 60 Hz • 44 amps • 28 kW (alternate voltages available) |
| Lamps | (24) 1550 T3 Short-Wave • 290 volt |
| Product Temperature | 500°F (high temperature options available) |
