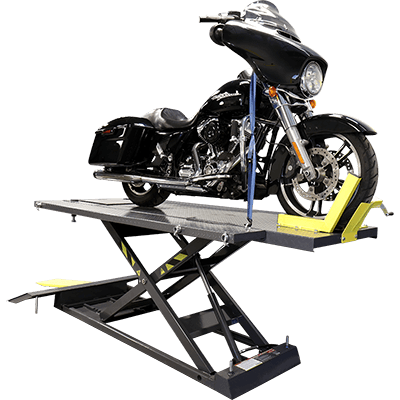

5150605 RML-1500XL RANGER Motorcycle Lift Platform With Front Wheel Vise
The RML-1500XL motorcycle lift offers an incredible 1,500-lb. lift capacity. It boasts exceptionally large platform to handle virtually any motorcycle or ATV in its weight class.
Features
- A combination of power, solid construction, and user-friendly features makes the Ranger RML-1500XL the best motorcycle lift money can buy.
- With little effort, you can easily position, secure and raise motorcycles, bobbers, stretched choppers, trikes and other wheeled and recreational vehicles with ease.
- Features 12-gauge welded-steel construction, a non-skid diamond-plate platform surface and full travel automatic safety locks that allow various working heights.
- Side decks can be easily removed to provide a more compact work area for closer access to bikes when performing maintenance work or cleaning detail.
- A humongous 1,500-lb. lifting capacity handles just about anything that rolls.
- Safe and reliable means it’s been lifecycle tested beyond industry standards.
- Retractable, built-in, full-swivel casters provide stow-and-go capability even when loaded.
- Precision ball bearings improve rollability and are maintenance free.
- A gentle slope, textured diamond-plate approach ramps, and a secondary cheater ramp means even ground huggers can be loaded effortlessly.
- The RML-1500XL gets its power from a potent commercial-grade hydraulic power system that produces big lifting muscle right off the ground.
- A dual-function power unit provides either air or hydraulic pump operation.
- User-friendly controls increase productivity, reduce injuries, save money, and improve job satisfaction.
- A wide base frame combined with full perimeter tie-down rings provides a stable work environment ensuring bikes and choppers remain upright; tip-over concerns remain a thing of the past.
- Chrome alloy hydraulic cylinder provides smooth, controlled operation to keep things nice and civilized, and an extended-stroke ram means the RML-1500XL stands tall for improved ergonomics.
- A rigid tubular-steel wheel vise provides better stability and features a hardened steel crank and ergonomic handle for fast and easy set-up. Durable non-slip rubber contact plates help protect expensive wheels.
- A removable rear deck provides drop-down clearance and accessibility for wheel and suspension work.
- Rear vertical support poles provide a secure and stable support for hoist straps, as well as tie-downs for elevated bike testing or other floating required services.
| Lifting Capacity | 1,500 lbs. (680 kg) |
| Power Supply | Air / Hydraulic |
| Main Platform Length | 79.5" (2,019 mm) |
| Main Platform Length w/ Extension | 99.75" (2,534 mm) |
| Main Platform Width | 29.5" (749 mm) |
| Overall Width with Side Decks | 51" (1,295 mm) |
| Overall Length w/ Extension & Ramp | 134.75" (3,422 mm) |
| Max Lifting Height | 45" (1,143 mm) |
| Lowered Height | 7.75" (197 mm) |
| Platform Height - 1st Lock Position | 24" (610 mm) |
| Platform Height - 2nd Lock Position | 28.75" (730 mm) |
| Platform Height - 3rd Lock Position | 32.5" (825 mm) |
| Platform Height - 4th Lock Position | 36" (902 mm) |
| Platform Height - 5th Lock Position | 38.5" (978 mm) |
| Platform Height - 6th Lock Position | 41" (1,041 mm) |
| Air Supply | 90 to 160 psi |
| Shipping Weight | 808 lbs. (367 kg) |
| Shipping Dimensions | 46'' x 91'' x 16'' (1,168 mm x 2,311 mm x 406 mm) |
