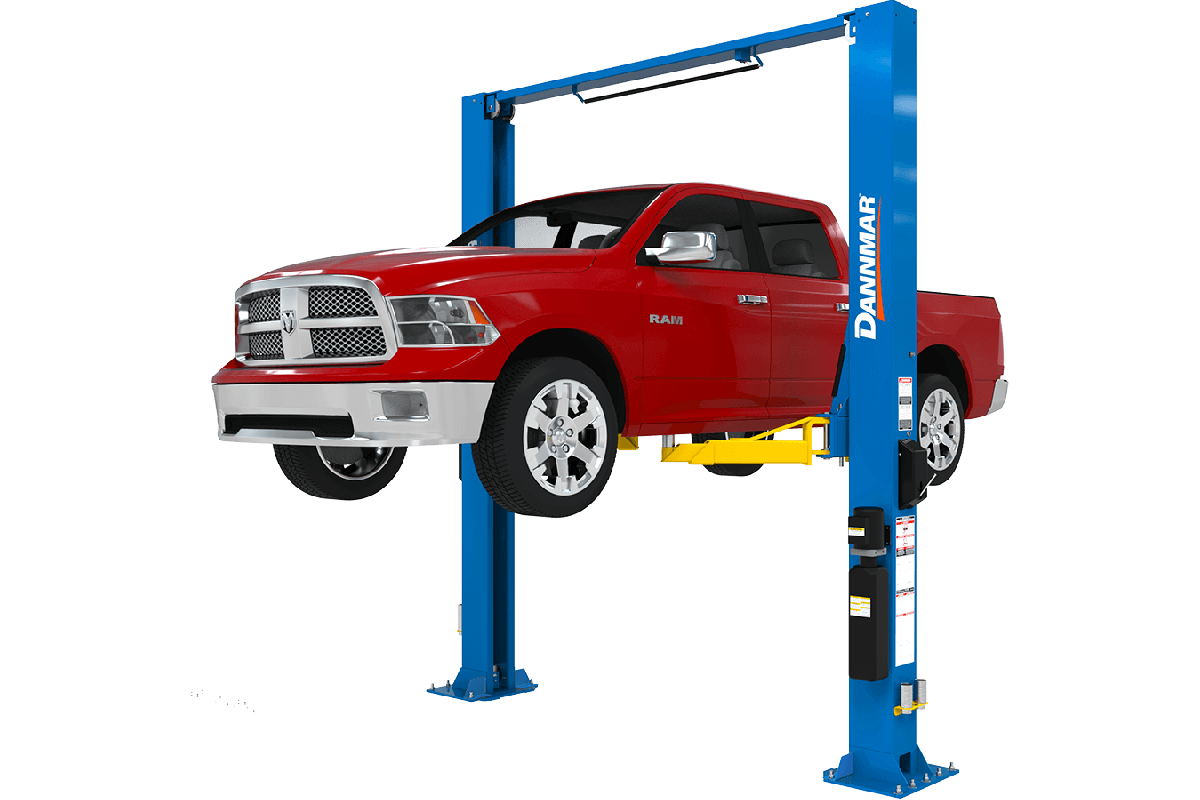

Dannmar D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post Lift / Symmetric Clearfloor / Triple-Telescoping Low-Pro Arms
Dannmar D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post Lift / Symmetric Clearfloor / Triple-Telescoping Low-Pro Arms
Dannmar D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post Lift / Symmetric Clearfloor / Triple-Telescoping Low-Pro Arms

Dannmar D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post Lift / Symmetric Clearfloor / Triple-Telescoping Low-Pro Arms

$7,514.29
Finance with low monthly payments click to apply

SKU: 5175312

GTIN: 849672023371.00

Contact us for more information

5175312 D2-12C 12K Capacity 2-Post / Clearfloor / Triple-Telescoping Arms / Incl Deluxe Adapter Kit

The D2-12C is Dannmar’s closed-top model, thus providing clear floor convenience. The closed-top/clear floor two-post lift allows uninterrupted floors so that you can roll floor jacks, toolboxes, and other equipment underneath the elevated vehicle without having to travel over and bang through a floor-mounted hydraulic line panel. This lift has a big 12,000 lb. lifting capacity. This lift routes the operating hydraulic lines up and across, 14 feet height hose routing above the floor.

Features

  • Dual direct-drive hydraulic cylinders
  • Heavy-duty 1/2” aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters
  • Dual-synchro equalization system for equal lifting
  • Padded overhead safety shutoff bar - Extended height top-beam provides greater clearance
  • Single-point safety release
  • Oversized 53” tall carriage for superior strength
  • Electric/hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating Dura-glide UHMW polyethylene bearings
  • Safety locks in each column spaced every 3”
  • Automatic arm restraints
  • 16-piece specialty adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads - Convenient storage is included for truck and van adapters
  • Triple-telescoping arms provide increased range
Style Symmetric
SKU# 5175312
Lifting Capacity 12,000 lbs. (5,443 kg)
A - Lowered Height + Pad 4.25" (108 mm)
B - Max. Lift Height (Top Lock) 80" (2,032 mm)
C - Max. Rise 69" (1,753 mm)
D - Height Overall 168.75" (4,286 mm)
E - Width Overall 155.25" (3,943 mm)
F - Width Outside Columns 142.5" (3,620 mm)
G - Width Inside Columns 119.5" (3,035 mm)
H - Drive-Thru Clearance 105” (2,663 mm)
I - Floor to Top Switch 162.75” (4,131 mm)
J - Arm Reach 31.5" (800 mm) - 58” (1,473 mm)
Max. Load per Arm 3,000 lbs. (1,361 kg)
Time to Full Rise 55 seconds
Noise 45 dB
Motor 220 VAC / 60 Hz / 1 Ph
Shipping Weight 2,618 lbs. (1,187.5 kgs)
Shipping Dimensions
177" x 29" x 40" (4,495 mm x 736 mm x 1,016 mm)
