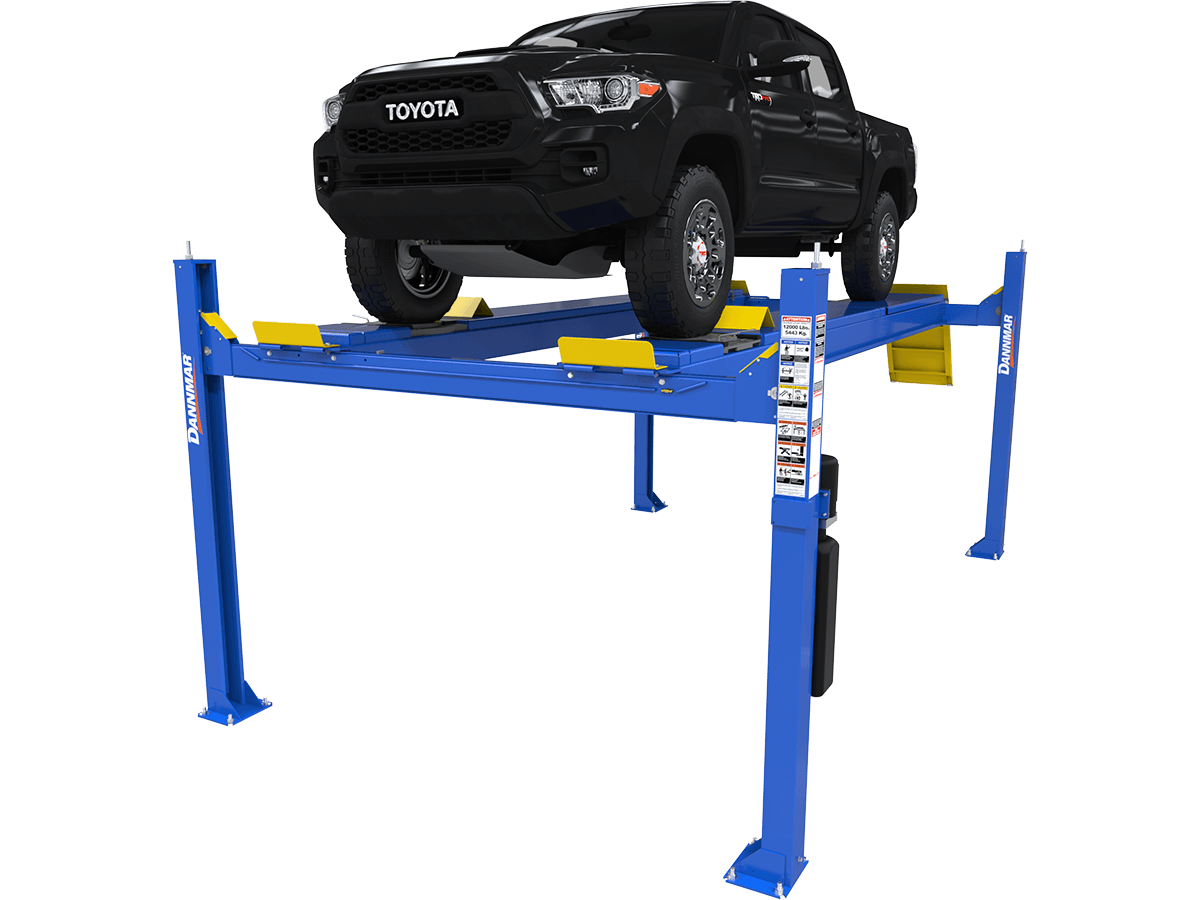

5175318 D4-12A DANNMAR 12K Capacity 4-Post Alignment Lift / Incl. Rear Slip Plates and Turnplates
Dannmar’s D4-12A 12,000 lb. capacity alignment lift utilizes industrial-strength slip plates and turn plates into the runways to provide optimal results. With this, the wheels respond to every adjustment with effectively no resistance.
Features
- 12,000 pound lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Heavy-duty turn plates and integrated rear slip-plates
- Multi-position turn plate pockets
- Automatic leveling system
- Multiple auto-leveling locking positions
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal “Anti-Sway” slider blocks in each column
- Oversize sheaves and heavy-duty 1/2” aircraft cable
- Rugged 1-3/8” roller axles and oversize self-lubricating cable sheaves
- Multi-position safety locks in each column with push-button safety release
- Runways adjust for different tread widths and feature non-skid surface
- Optional 6,000-lb. capacity bridge jacks available
| Lifting Capacity | 12,000 lbs. (5,443 kg) |
| A - Min. Runway Height | 9.5" (243 mm) |
| B - Max. Rise | 68.75" (1,746 mm) |
| C - Max. Lifting Height | 79.5" (2,019 mm) |
| D - Ramp Clearance* (Max. Rise) | 49" (1,245 mm) |
| E - Height of Columns | 92" (2,337 mm) |
| F - Drive-Thru Clearance | 98” (2,482 mm) |
| G - Overall Width | 127.5" (3,239 mm) |
| H - Width Between Columns | 115.75" (2,940 mm) |
| I - Overall Length | 233.5" (2,940 mm) |
| J - Outside Length | 194.75” (4,947 mm) |
| K - Width Between Runways | 34.5" (876 mm) or 41.5" (1,054 mm) |
| L - Runway Centerline | 54.5" (1,384 mm) or 61.5" (1,562 mm) |
| M - Outside Edge of Runways | 74.5" (1,892 mm) or 81.5" (2,070 mm) |
| N - Runway Width | 20" (508 mm) |
| O - Length of Runways | 194.75" (4,947 mm) |
| Min. 4-Wheel Alignment | 106” (2,692 mm) |
| Max. 4-Wheel Alignment | 158.5” (4,026 mm) |
| Max. 2-Wheel Alignment | 163.5” (4,153 mm) |
| Min. Wheelbase @ Rated Capacity | 140” (3,556 mm) |
| Min. Wheelbase @ 75% Capacity | 120” (3,048 mm) |
| Min. Wheelbase @ 50% Capacity | 100” (2,540 mm) |
| Min. Wheelbase @ 25% Capacity | 80” (2,032 mm) |
| Locking Positions | 15 (spaced every 4” / 102 mm) |
| Time to Full Rise | 60 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 2,882 lbs. (1,307 kgs) |
| Shipping Dimensions |
201" x 24" x 47" (5,105 mm x 609 mm x 1,193 mm)* Approach ramps can be removed.
|
