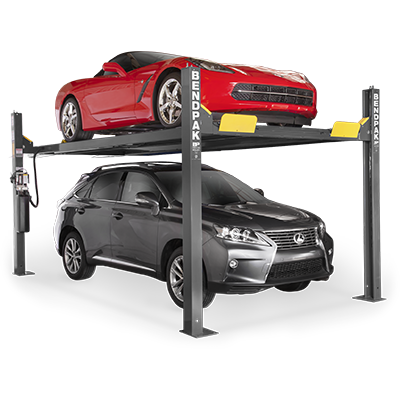

5175863 HD-9XW 9,000 Lb. Capacity / Standard Width / High Lift
The HD-9XW is a standard width, extra-tall lift that offers ample overhead clearance and enough side room to park light-duty trucks, SUVs and virtually all low ground-clearance vehicles.
Features
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- High-rise
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric-hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles available
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
| Capacity | |
| Lifting Capacity* | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| Rise | |
| A - Min. Runway Height: | 4.5" (114 mm) |
| B - Max. Rise: | 82" (2,083 mm) |
| C - Max. Lifting Height: | 86.5" (2,197 mm) |
| Time to Full Rise: | 50 seconds |
| Outside Dimensions | |
| D - Overall Width: | 110.25" (2,800 mm) |
| E - Outside Length: | 198" (5,029 mm) |
| F - Overall Length: | 224" (5,690 mm) |
| G - Height of Columns: | 100" (2,540 mm) |
| Inside Dimensions | |
| H - Width Between Columns: | 100.25" (2,546 mm) |
| I - Drive-Thru Clearance: | 86.5" (2,197 mm) |
| Runways | |
| J - Runway Width: | 19" (483 mm) |
| K - Length of Runways: | 188" (4,775 mm) |
| L - Width Between Runways: | 37.5" (953 mm) or 44.375" (1,127 mm) |
| M - Runway Centerline: | 56.5" (1,435 mm) or 63.375" (1,610 mm) |
| N - Outside Edge of Runways: | 75.5" (1,918 mm) or 82.375" (2,092 mm) |
| Minimum Wheelbase | |
| Rated Capacity: | 135" (3,429 mm) |
| 75% Capacity: | 115" (2,921 mm) |
| 50% Capacity: | 95" (2,413 mm) |
| 25% Capacity: | 80" (2,032 mm) |
| Locking | |
| Locking Positions: | 15 |
| Lock Spacing: | Every 4" / 102 mm |
| Power Unit | |
| Motor: | 220 VAC / 60 Hz. 1Ph. |
| Noise: | 45 dB |
| Shipping | |
| Weight: | 1,802-lbs. (817.6 kg) |
| Dimensions: | 188'' x 22'' x 40'' (4,775 mm x 558 mm x 1,016 mm) |
