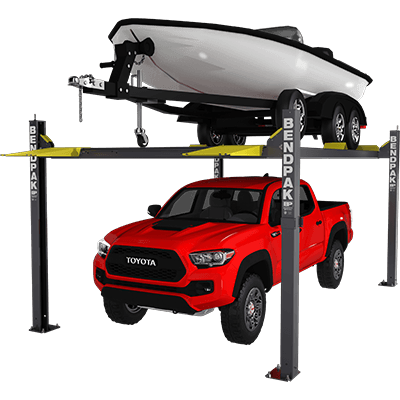

5175315 HD-7500BLX BENDPAK 7,500 Lb. Capacity / Vehicle & Boat Storage Lift / 82" Rise
Avoid rust, blemishes, rot, weather damage and more with BendPak's longer, extended-height HD-7500BLX boat lift. It's the safest, most cost-effective way to dry dock your boat.
Features
- 7,500-pound lifting capacity
- Two different lifting heights to choose from
- Electric / hydraulic power system
- Internal anti-sway slider blocks in each column
- Both models feature heavy-duty 3/8" aircraft cable
- Multi-position safety locks in each column
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder underneath runway
- Over-sized self-lubricating cable rollers
- Rugged 1-1/4" roller axles
- Adjustable lock ladders
- Push-button pneumatic safety release
- Durable powder coat finish
| Lifting Capacity* | 7,500 lbs. (3,402 kg) |
| *Max Capacity / Front Axle | 3,750 lbs. (1,701 kg) |
| *Max Capacity / Rear Axle | 3,750 lbs. (1,701 kg) |
| Rise | |
| A - Min. Runway Height: | 5" (127 mm) |
| B - Max. Rise: | 82" (2,083 mm) |
| C - Max. Lifting Height: | 87" (2,210 mm) |
| Time to Full Rise: | 55 seconds |
| Outside Dimensions | |
| D - Overall Width: | 132" (3,353 mm) |
| E - Outside Length: | 198" (5,029 mm) |
| F - Overall Length: | 224" (5,690 mm) |
| G - Height of Columns: | 100" (2,540 mm) |
| Inside Dimensions | |
| H - Width Between Columns: | 122" (3,099 mm) |
| I - Drive-Thru Clearance: | 108.5" (2,756 mm) |
| Runways | |
| J - Runway Width: | 19" (483 mm) |
| K - Length of Runways: | 188.5" (4,788 mm) |
| L - Width Between Runways: | 49.5" (1,257 mm) or 69.5" (1,765 mm) |
| M - Runway Centerline: | 68.5" (1,740 mm) or 88.5" (2,248 mm) |
| N - Outside Edge of Runways: | 87.5" (2,223 mm) or 107.5" (2,731 mm) |
| Minimum Wheelbase | |
| Rated Capacity: | 135" (3,429 mm) |
| 75% Capacity: | 115" (2,921 mm) |
| 50% Capacity: | 95" (2,413 mm) |
| 25% Capacity: | 80" (2,032 mm) |
| Locking | |
| Locking Positions: | 15 |
| Lock Spacing: | Every 4" (102 mm) |
| Power Unit | |
| Motor: | 220 VAC / 60 Hz / 1 Ph |
| Noise: | 45 dB |
| Shipping | |
| Weight: | 1,980 lbs. (898.1 kg) |
| Dimensions: | 190'' x 22'' x 39'' (4,826 mm x 558 mm x 990 mm) |
