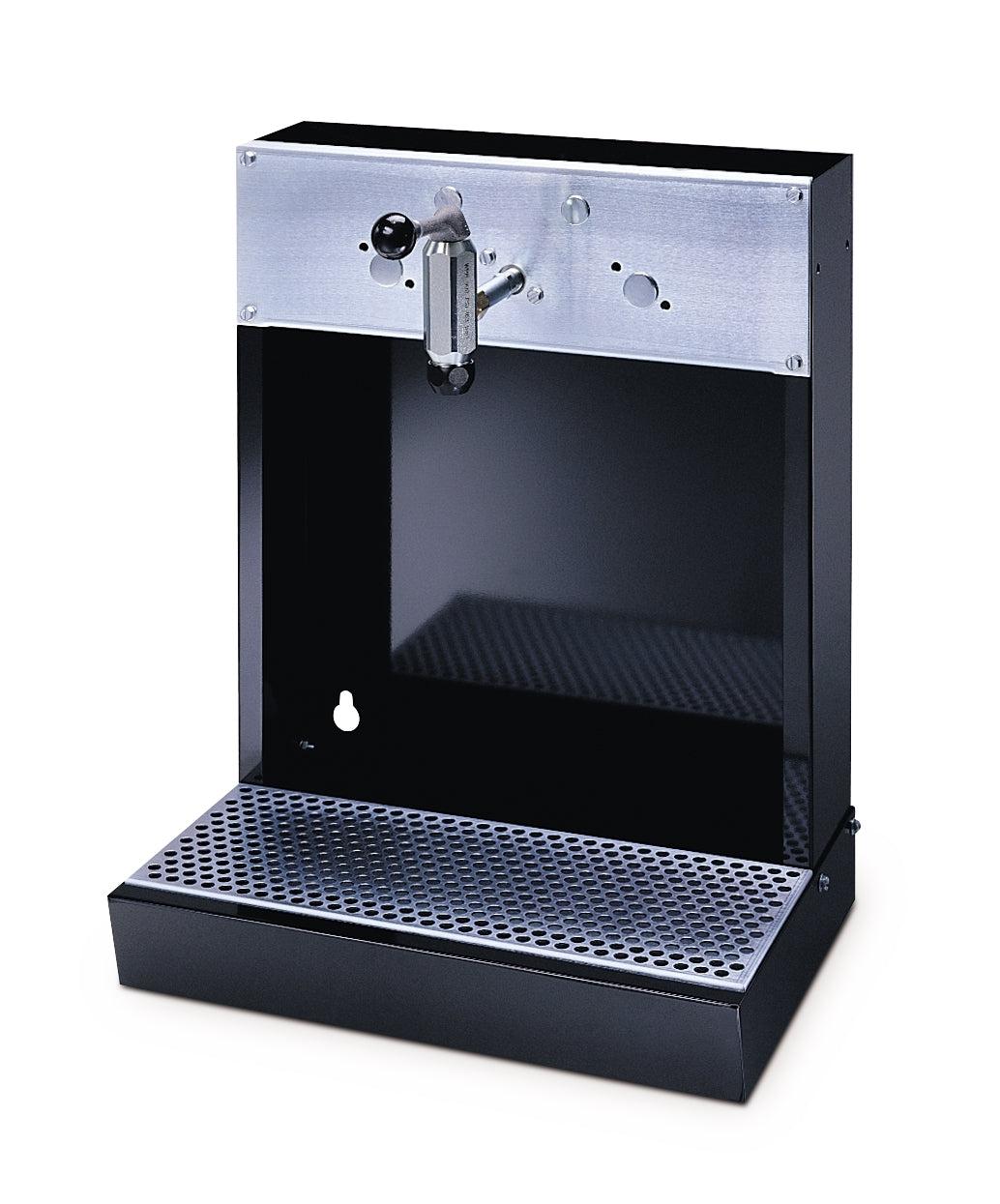

Graco Oil Dispense Bar - Up to three Dispense Taps and Optional Meters

Graco Oil Dispense Bar - Up to three Dispense Taps and Optional Meters

Regular price
$1,665.00
Sale price
$1,665.00
Quantity must be 1 or more


Modular convenient design allows up to two oil dispense taps or three meters to be added at the time of installation, or later if required.

  • Tough metal cabinet with baked-on enamel finish.
  • Constructed with single-dispense tap and waste pan with plated, perforated metal service area and drain connection.
UPC Product: 00633955199880
Family Code: FAMOAP
Unit of Measure: EA
Height: 6 IN   |  15.24 CM
Length: 22.8 IN   |  57.912 CM
Width: 48.768 CM   |  19.2 IN
Volume: 1.52 FT3   |  .043 M3
Chargeable Weight: 32 LBS  | 14.51 KG

Technical Specifications

Drain Hose Size (mm) 19.05
Drain Hose Size (in) 0.75
Drain Hose Size (cm) 1.905
Drain Hose Thread Type NPT
Fluid Inlet Size (cm) 1.27
Fluid Inlet Size (in) 0.5
Fluid Inlet Size (mm) 12.7
Fluid Inlet Thread Type NPT
Maximum Working Pressure (bar) 62
Maximum Working Pressure (kPa) 6200
Maximum Working Pressure (psi) 900
Number of Dispense Stations 3
Overall Height (cm) 57.40
Overall Height (in) 22.6
Overall Height (mm) 574.04
Overall Length (cm) 34
Overall Length (in) 13.25
Overall Length (mm) 337
Overall Width (cm) 46.48
Overall Width (in) 18.3
Overall Width (mm) 464.82
Type Dispense Bar
Weight (lb) 35
Weight (kg) 15.75
Maximum Working Pressure (MPa) 6.2
