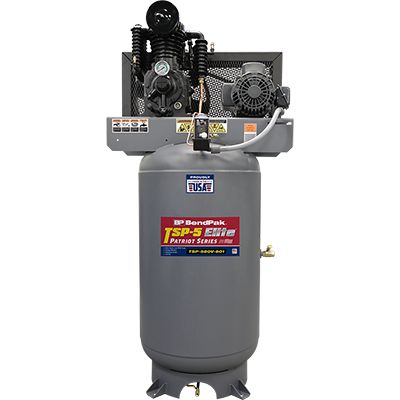

5179111 TSP-580V-601 BENDPAK Air Compressor / 5 HP, 80-Gal. Tank, 208-230V, 1-Ph. / PATRIOT CLASS MADE IN USA
The TSP-5 Patriot Series air compressor features an 80-Gallon vertical tank and 5 HP, low-RPM motor for high efficiency. Built for high productivity and lower operating costs, it produces more compressed air using an extremely efficient and low-energy-consuming components. Made in USA.
Features
- Made in USA
- UL, CSA, ASME certified
- Extra-quiet, low-RPM pump
- 5 HP energy‐efficient motor
- Pressure switch ensures efficient operation at all times with no wasted energy
- Cast‐iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed‐in sleeves
- Cast‐iron Elite pump features simple splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling
- Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
- Fully‐enclosed belt guard
- Anti-vibration pads included
- Large surface area and cooling fins on cylinders and forced‐air after-cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
- Precision honed cylinders increase efficiency and oil control
- Oversized ductile iron crankshaft provides extra strength and longer wear
- Tapered roller main bearings provide full contact and support of the crankshaft and needle‐type piston pin bearings properly distribute bearing loads
- Precision balanced flywheel has forced‐air fan blades for optimum compressor cooling and life
- Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble‐free operation
- ASME-rated safety valve protects the compressor from overpressure and safeguards the operator
- Balanced flywheel and counterbalanced crankshaft provides vibration‐free operation
- Readily accessible disc‐valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
- Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance
- High‐density, die‐cast aluminum alloy rods minimize reciprocating weight
- Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
- Automatic pressure switch provides auto start and stop
- Integrated pressure unloader valves are built into the intake valve assembly on the compressor head, reducing internal pump heat from initial start‐up compression
- Pressure gauge with service valve
- Oversize replaceable air filter
| Motor | |
| Horsepower: | 5 HP |
| RPM: | 1,750 RPM |
| Voltage: | 208-230 Volt AC |
| Phase: | 1-Phase |
| Hertz: | 60 Hz |
| Magnetic Starter: | No |
| Amp Draw: | 24 |
| Recommended Breaker: | 40 Amp Breaker |
| Noise: | 72 dBA |
| Pump | |
| Style: | 2-Stage / 2-Piston / Vertical |
| Pump RPM: | 625 RPM |
| Material: | Solid Cast Iron |
| Duty Cycle: | Continuous |
| CFM: | 17 CFM |
| CFM Rated @: | 175 PSI |
| Max PSI: | 175 PSI |
| Oil Sight Glass: | Yes |
| Pump Type: | Two-Stage |
| Pump Drive: | Belt Drive |
| Oil Type: | Oil Lubricated |
| Oil System: | Full Pressure Lubrication |
| Tank | |
| Orientation: | Vertical |
| Size: | 80 gallon |
| Outlet: | 3/4" Fitting |
| Electronic Drain Valve: | Yes |
| Certification: | UL, CSA, ASME |
| Dimensions | |
| Width: | 24" (610 mm) |
| Depth: | 71" (1,803 mm) |
| Height: | 34" (864 mm) |
| Shipping | |
| Weight: | 676-lbs. (306.6 kg) |
| Dimensions: | 44'' x 40'' x 75'' (1,117 mm x 1,016 mm x 1,905 mm) |
