ProConnect
– Fast and easy on-the-job Pump Replacement System
– 1-minute Jobsite replacement in 3 simple steps
– Endurance Now program available

MaxPower Motor
– Graco’s compact and powerful brushless DC motors are designed to produce the most power possible for all painting applications
– Higher torque = More work is done
– Totally enclosed, fan-cooled design protects the internal components of the motor from dirt, dust, and overspray
– Brushless design means that you will never need to replace brushes
– DC motors are more forgiving to voltage fluctuation and can run on longer power cords

Endurance Pump
– The most reliable pump on the market—lasts 2 times longer than the next leading brand
– Long-life V-Max Blue packings, Chromex Rod, and hardened stainless steel cylinder
– QuikAccess intake valve for fast cleaning or debris clearing

Easy Out Pump Filter
– Vertical design helps eliminate spills
– Filters from the inside out and won’t collapse
– Large 7.8-square-inch filtering area reduces tip clogs
– Flow-through design cleans with only a few gallons

Advantage Drive
– Hardened steel gears run extremely quiet
– The high-ratio reduction provides slow pump stroking

FastFlush High-flow cleaning system runs faster and dramatically reduces cleaning time

Smart Control 2.5
– The digital display shows pressure, gallons, and hours
– Provides error messages and diagnostics
– Ideal for maintenance tracking
– Aids in fleet management

Units include:
– Contractor GunRAC X 517 Switch
– Tip and Guard1/4 in x 50 ft (6.4 mm x 15 m) Blue
– Max II Airless Hose
– Available in Stand, Lo-boy and Hi-boy models

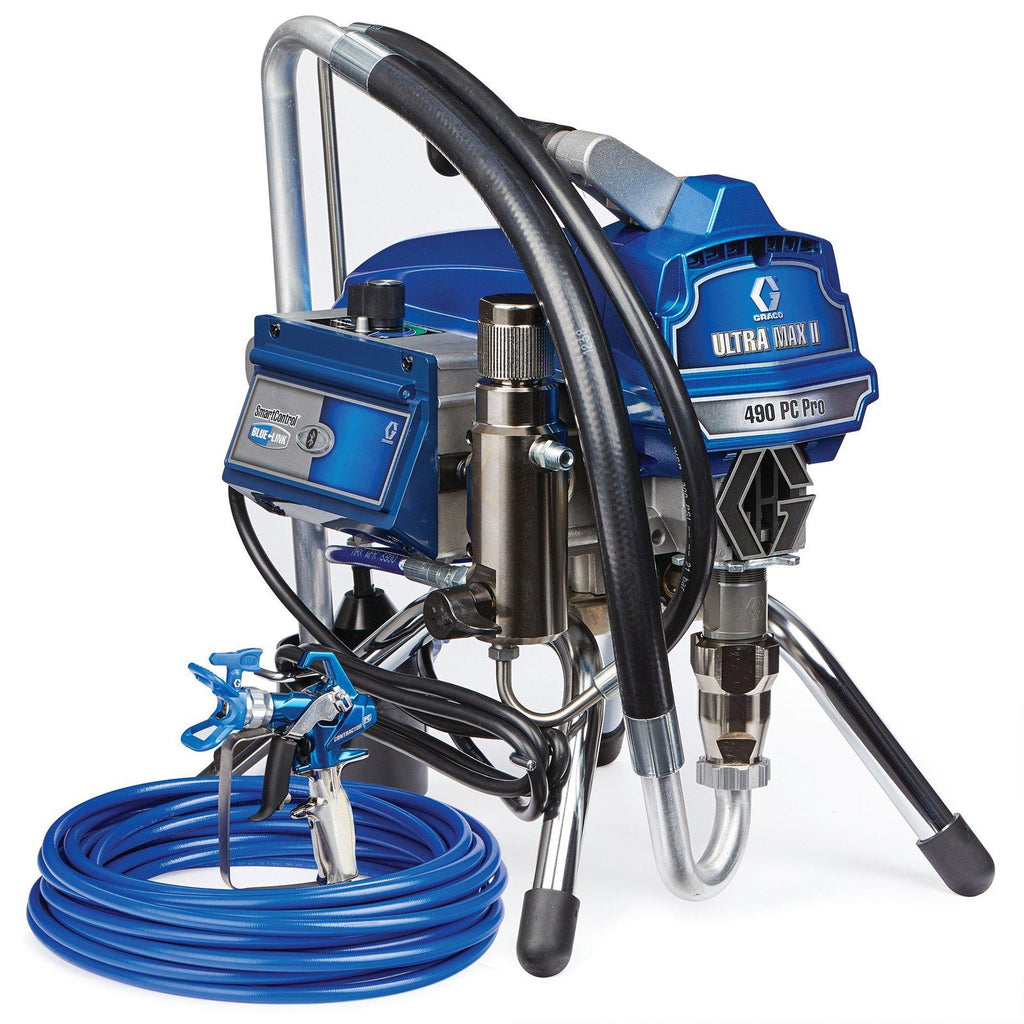

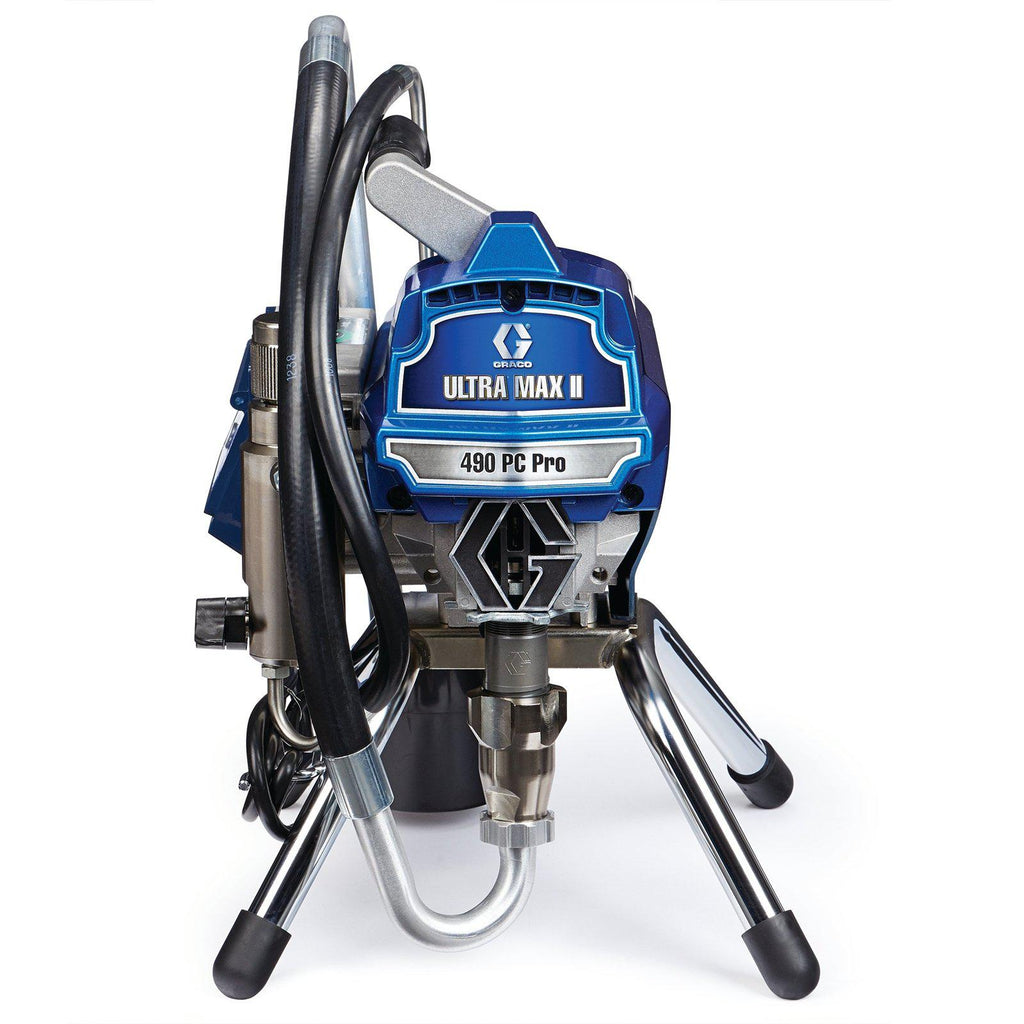

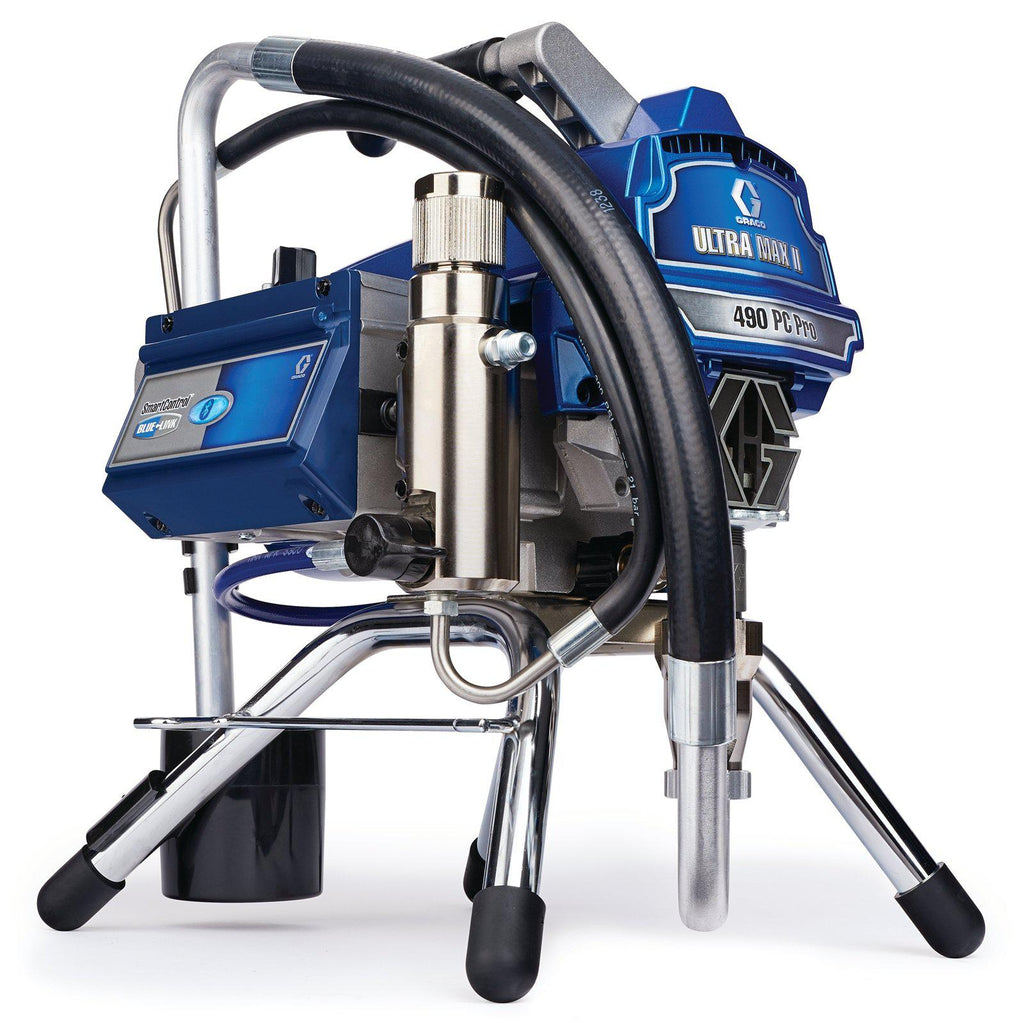

 **17C327 SPRAYER, 490, UMAX II, PCPRO, STAND is superseded by 17E852
