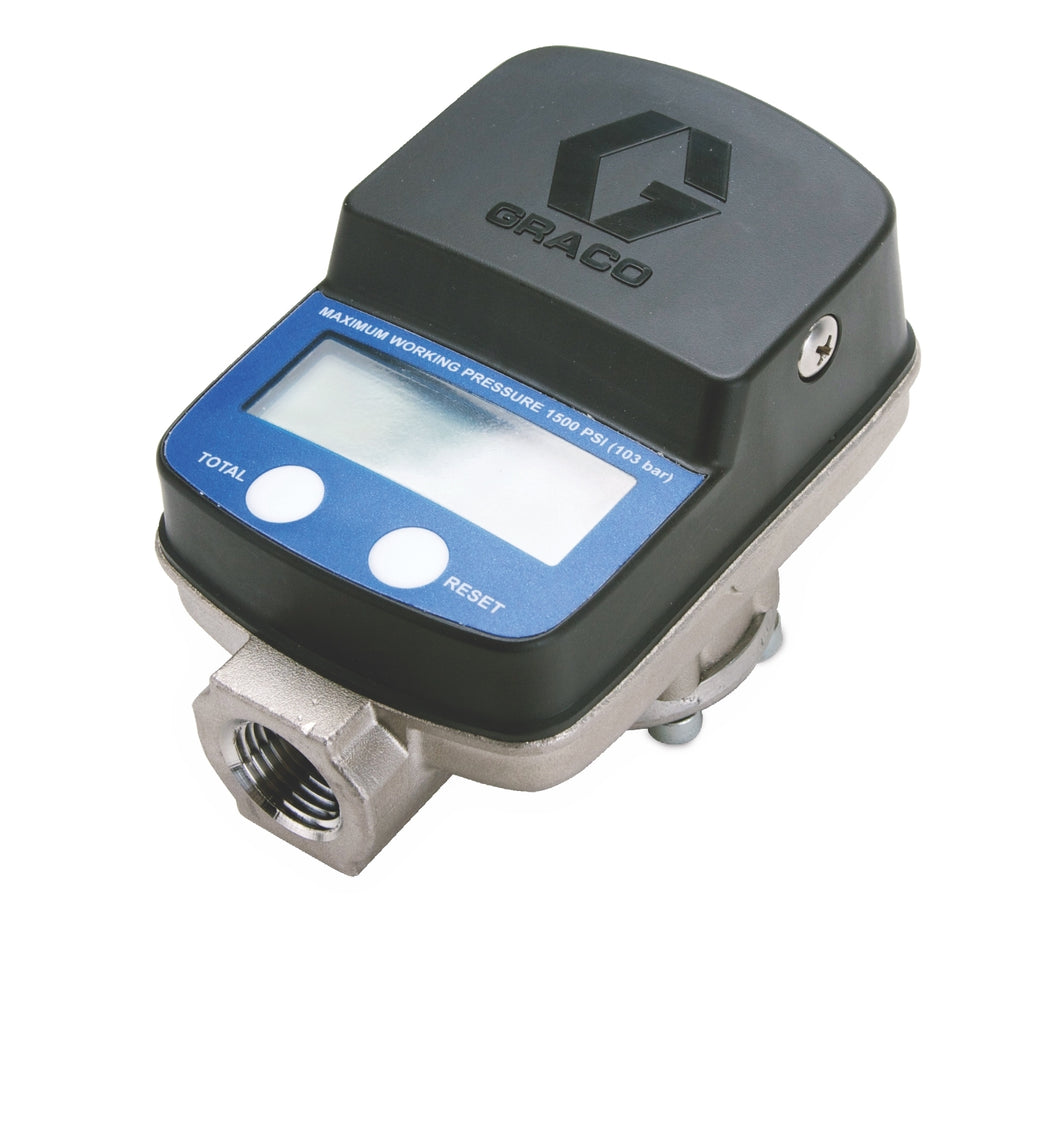

SDI15 Med/High Pressure, Med/High Flow In-Line Meter for Petroleum- and Synthetic-Based Oils, Antifreeze, Windshield Washer Fluid

SDI15 Med/High Pressure, Med/High Flow In-Line Meter for Petroleum- and Synthetic-Based Oils, Antifreeze, Windshield Washer Fluid

Regular price
$832.00
Sale price
$832.00
Quantity must be 1 or more


These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.

Typical applications include automotive, fast lube centers, service shops, heavy-duty dealerships, fleet service facilities, in-plant and mining.

  • Rugged stainless steel body remains corrosion free in hard environments for years of trouble-free service.
  • Large, easy-to-read LCD display show dispense quantities.
  • Simple operator controls and measures in pints, quarts, liters or gallons.
  • Tracks totals in two modes: reset total for a periodic dispense history and non-reset total for the meter’s total dispense history.
  • Energy efficient powered by two AA alkaline batteries.
  • Compatible with Petroleum- and synthetic-based oils (motor, gear and ATF), antifreeze, windshield washer fluid, and diesel exhaust fluid.
UPC Product: 00633955313118
Family Code: FAMMAP
Unit of Measure: EA
Height: 9.7 IN   |  24.638 CM
Length: 8.1 IN   |  20.574 CM
Width: 5.3 IN   |  13.462 CM
Volume: .241 FT3   |  .007 M3
Chargeable Weight: 2.95 LBS  | 1.34 KG

Technical Specifications

Battery Chemistry Alkaline
Battery Size AA
For Use With 石油、合成油及防冻剂, 石油および合成ベースオイルと凍結防止剤, petroleum-based and synthetic oils and antifreeze, Aceites y anticongelantes sintéticos y a base de petróleo, 석유계 및 합성 오일과 부동액
Inlet Size (cm) 1.27
Inlet Size (in) 0.5
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 15
Maximum Flow Rate (L/min) 57
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Maximum Working Pressure (bar) 105
Maximum Working Pressure (kPa) 10500
Maximum Working Pressure (psi) 1500
Meter Accuracy (%) ±0.5
Meter Repeatability (%) ±0.15
Minimum Operating Temperature (°C) -20
Minimum Operating Temperature (°F) -4
Weight (kg) 0.82
Weight (lb) 1.8
Wetted Material Nickel, Nitrile Rubber, PBT, Stainless Steel
Type Electronic In-Line Meter
Compatible Material Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze, Windshield Washer Fluid
Maximum Working Pressure (MPa) 10.5
Model SDI15
