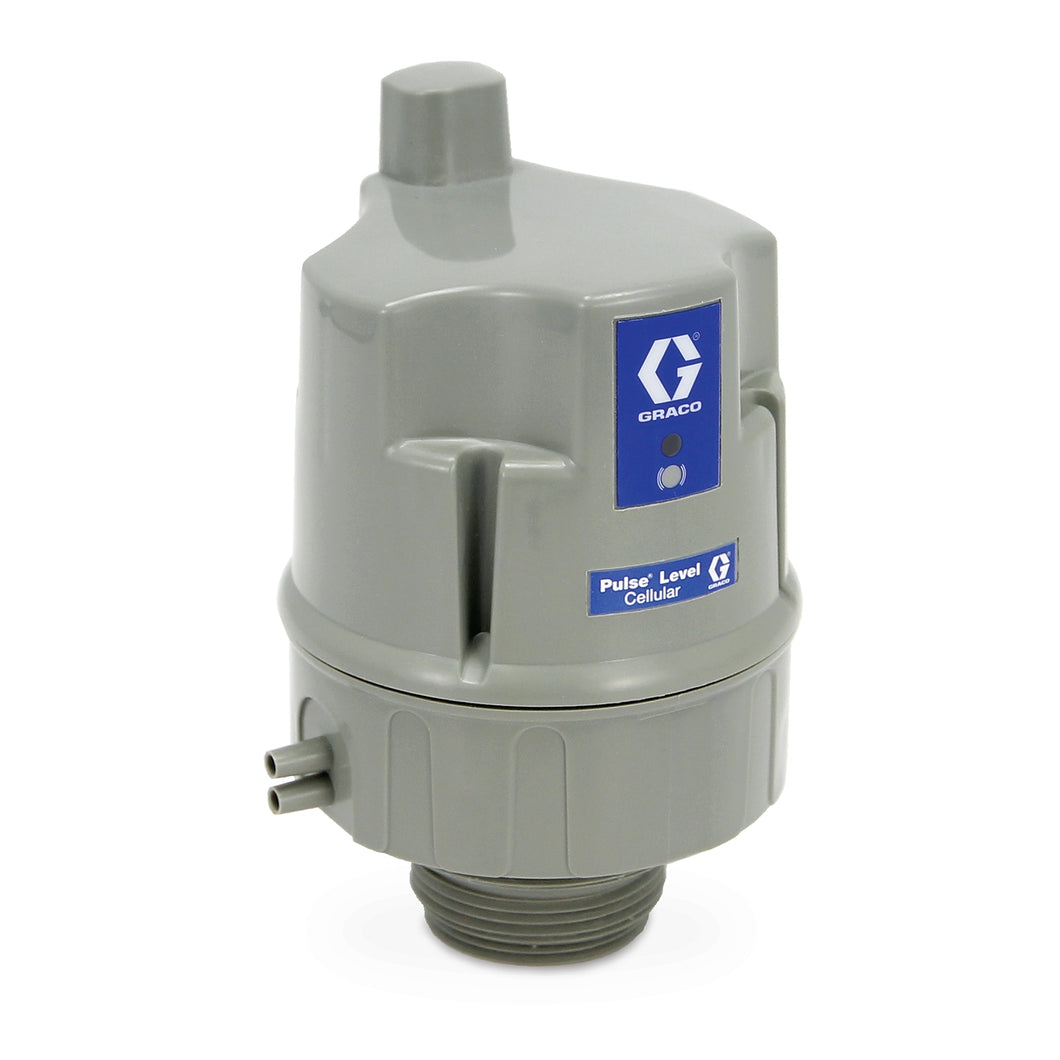

Pulse® Level ultrasonic cellular tank monitor

Pulse® Level ultrasonic cellular tank monitor

Regular price
$936.00
Sale price
$936.00
Quantity must be 1 or more


You deliver more than fluids. You are delivering insight. Graco pulse level offers highly intuitive tank-level-visibility options to help you optimise deliveries, margins and customer service. Track tank levels, capture and apply data, and assign distribution routes quickly, accurately and confidently from the industry’s leading fluid management expert. Pulse Level is compatible with 4G LTE networks, so you do not have to worry about investing in soon-to-be-obsolete technology.

  • Cellular communication - no need for a local network connection.
  • Long battery life - a 5 year battery life using replaceable C batteries
  • Ultrasonic sensor - measures tanks 4 m tall.

  • On-demand readings - the ability to take readings at any time.
UPC Product: 00769946189766
Family Code: FAMLVL
Unit of Measure: EA
Height: 10.16 CM   |  4 IN
Length: 6 IN   |  15.24 CM
Width: 6 IN   |  15.24 CM
Volume: .083 FT3   |  .002 M3
Chargeable Weight: 1.47 LBS  | .66 KG

Technical Specifications

Weight (lb) 1.17
Approvals FCC, CE
Battery Chemistry Alkaline
Battery Size C
For Use With Pulse Level, Pulse Level, Pulse Level, Niveau d'impulsion, Pulse Level, Pulse Level, Pulse Level, Pulse Level
Maximum Ambient Temperature (°F) 140
Maximum Operating Temperature (°F) 122
Maximum RF Operating Temperature (°F) 122
Maximum Storage Temperature (°F) 140
Minimum Ambient Temperature (°F) -22
Minimum RF Operating Temperature (°F) 0
Minimum Storage Temperature (°F) -22
Overall Height (in) 5.9
Overall Width (in) 4
RF Communication (GHz) 0.85-0.9, 1.8-1.9
Type Level Sensor
Cylindrical Tank Maximum Height (ft) 13
Cylindrical Tank Maximum Volume (gal) 999999
Fluid Level Measurement Accuracy (%) +/-1 in. (+/- 2 cm)
Number of Batteries 4
Obround Tank Maximum Height (ft) 13
Obround Tank Maximum Length (ft) Any
Obround Tank Maximum Volume (gal) 999999
Obround Tank Maximum Volume (L) 999999
Vertical Tank Maximum Height (ft) 13
Vertical Tank Maximum Volume (gal) 999999
Product Type Tank Level Monitor (TLM)
Vertical Tank Maximum Volume (L) 999999
Weight (kg) 0.531
Minimum Storage Temperature (°C) -30
Maximum Storage Temperature (°C) 60
Cylindrical Tank Maximum Volume (L) 999999
Cylindrical Tank Maximum Height (m) 4
Vertical Tank Maximum Height (m) 4
Obround Tank Maximum Height (m) 4
Obround Tank Maximum Length (m) Any
Maximum Operating Temperature (°C) 50
Overall Height (cm) 15
Overall Height (mm) 150
Overall Width (cm) 10.1
Overall Width (mm) 101
Overall Height (ft) 0.49
Overall Height (m) 0.015
Overall Length (cm) 9.3
Overall Length (ft) 0.305
Overall Width (ft) 0.333
Battery Life (h) 5 years
Overall Length (in) 3.66
Overall Length (m) 0.093
Overall Length (mm) 93
Overall Width (m) 0.0101
Model Pulse
