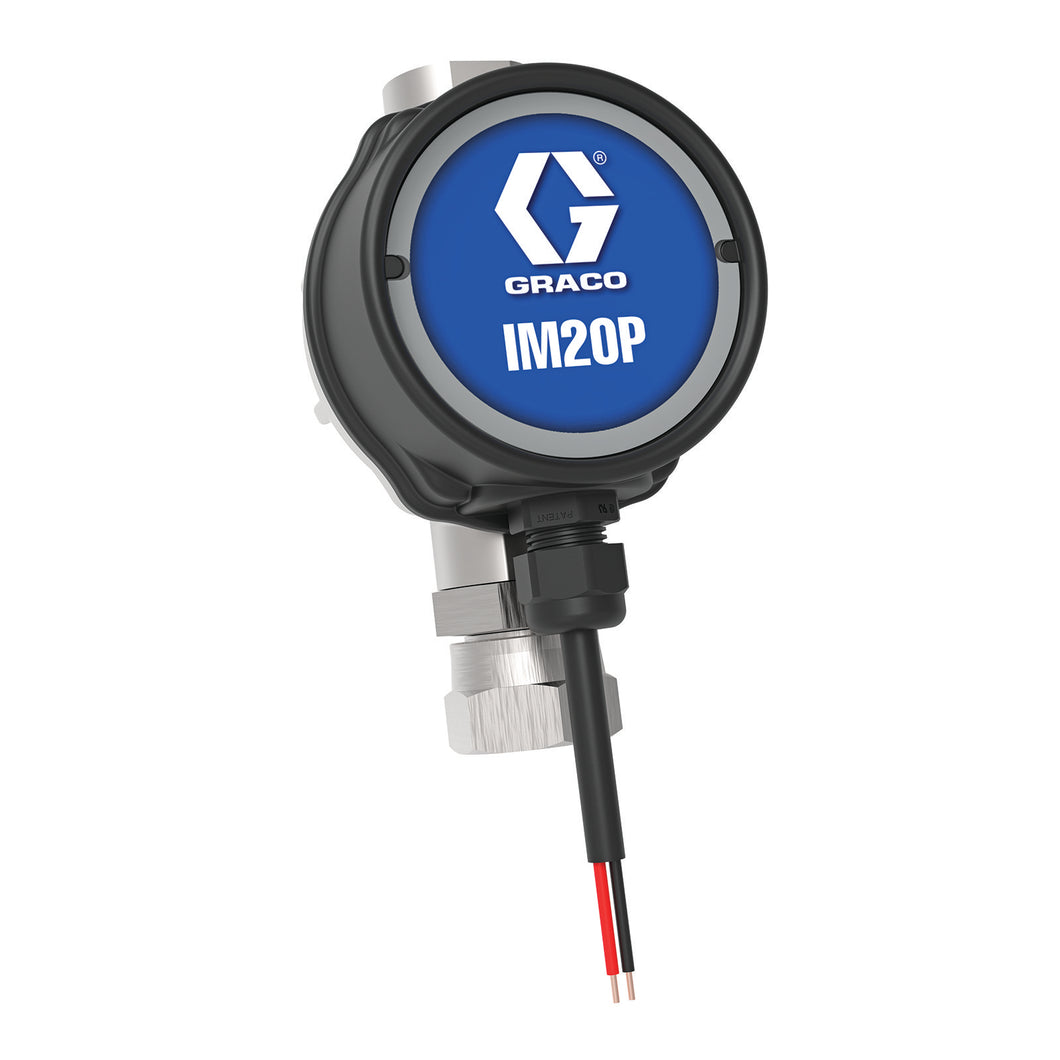

IM20P® Electronic Pulser Output In-Line Meter, 3/4 in (19mm) Ports, NPT

IM20P® Electronic Pulser Output In-Line Meter, 3/4 in (19mm) Ports, NPT

Regular price
$925.00
Sale price
$925.00
Quantity must be 1 or more


The IM20P wired electronic meter delivers precise in-line dispenses for in-plant, industrial and other applications. Its heavy-duty aluminum exterior and sealed electronics protect against corrosion inside or outside the plant. Designed and manufactured by a proven leader in meter technology, it’s capable of flow rates up to 20 gpm (75.7 lpm) for optimal performance.

Typical applications include heavy-duty mobile service trucks, mining and in-plant.

  • High Flow - Flow rates up to 20 gpm (75.7 lpm) for faster dispense.
  • Sealed Electronics - Meters are suitable for indoor or outdoor use. IP69K rated.
  • Rugged Aluminum Body - Remains corrosion free in harsh environments for years of trouble-free service.
  • Large Inlet and Outlet Porting - Minimal pressure drop to increase production.
  • Wired Convenience - Easily integrated with PLC (programmable logic controller).
UPC Product: 00769946227000
Family Code: FAMMXD
Unit of Measure: EA
Height: 5.25 IN   |  13.335 CM
Length: 14.5 IN   |  36.83 CM
Width: 4.75 IN   |  12.065 CM
Volume: .209 FT3   |  .006 M3
Chargeable Weight: 2.179 LBS  | 0.988 KG

Technical Specifications

Inlet Size (cm) 1.905
Inlet Size (in) 3/4
Inlet Size (mm) 19.05
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 20
Maximum Flow Rate (L/min) 75.7
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Maximum Working Pressure (bar) 102
Maximum Working Pressure (psi) 1500
Meter Accuracy (%) ±0.5
Minimum Flow Rate (GPM) 0.25
Minimum Flow Rate (L/min) 0.95
Outlet Size (in) 3/4
Outlet Thread Type NPT
Weight (lb) 1.3
Type Electronic In-Line Meter
Dispense Type Preset
Maximum Working Pressure (MPa) 10
