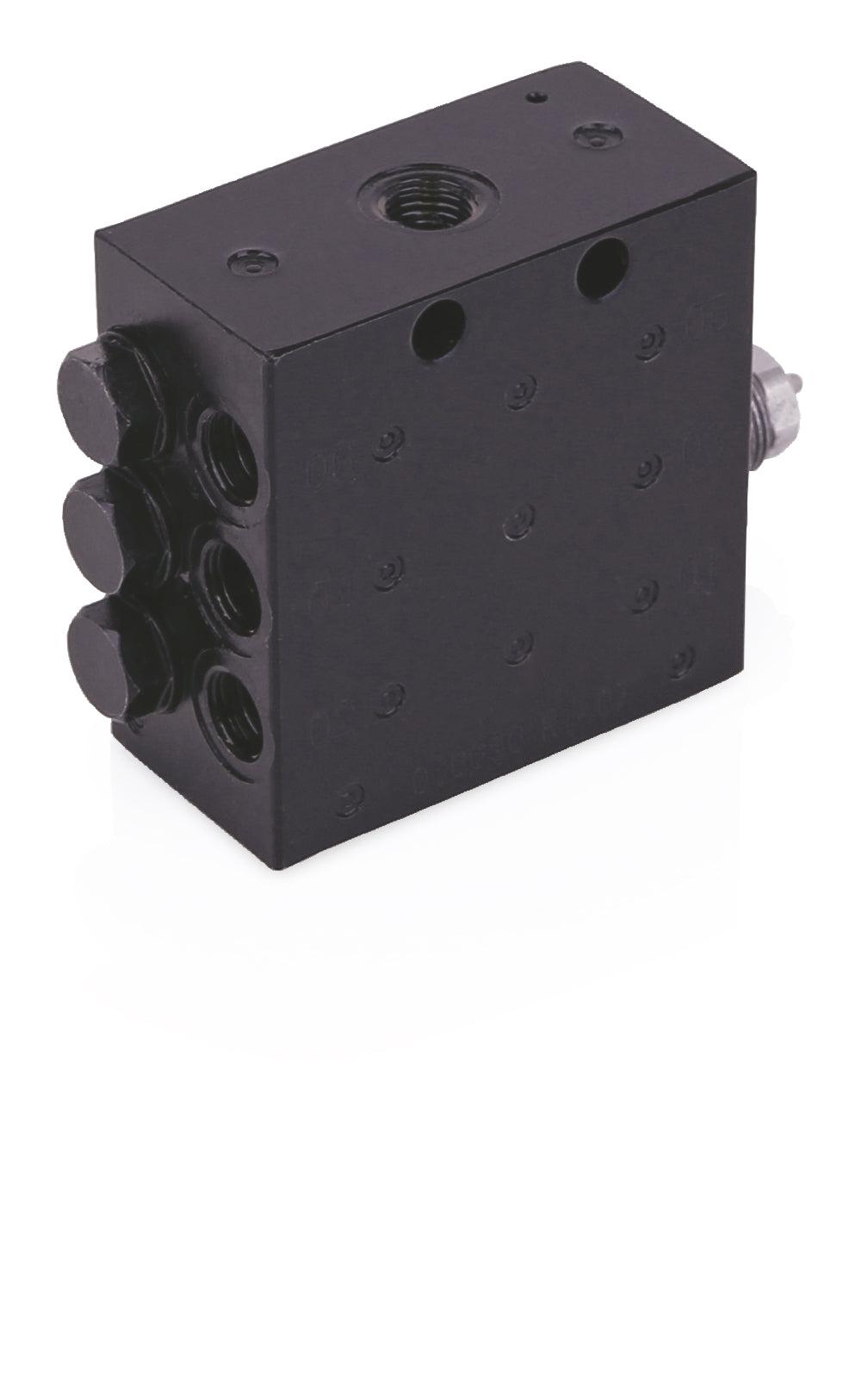

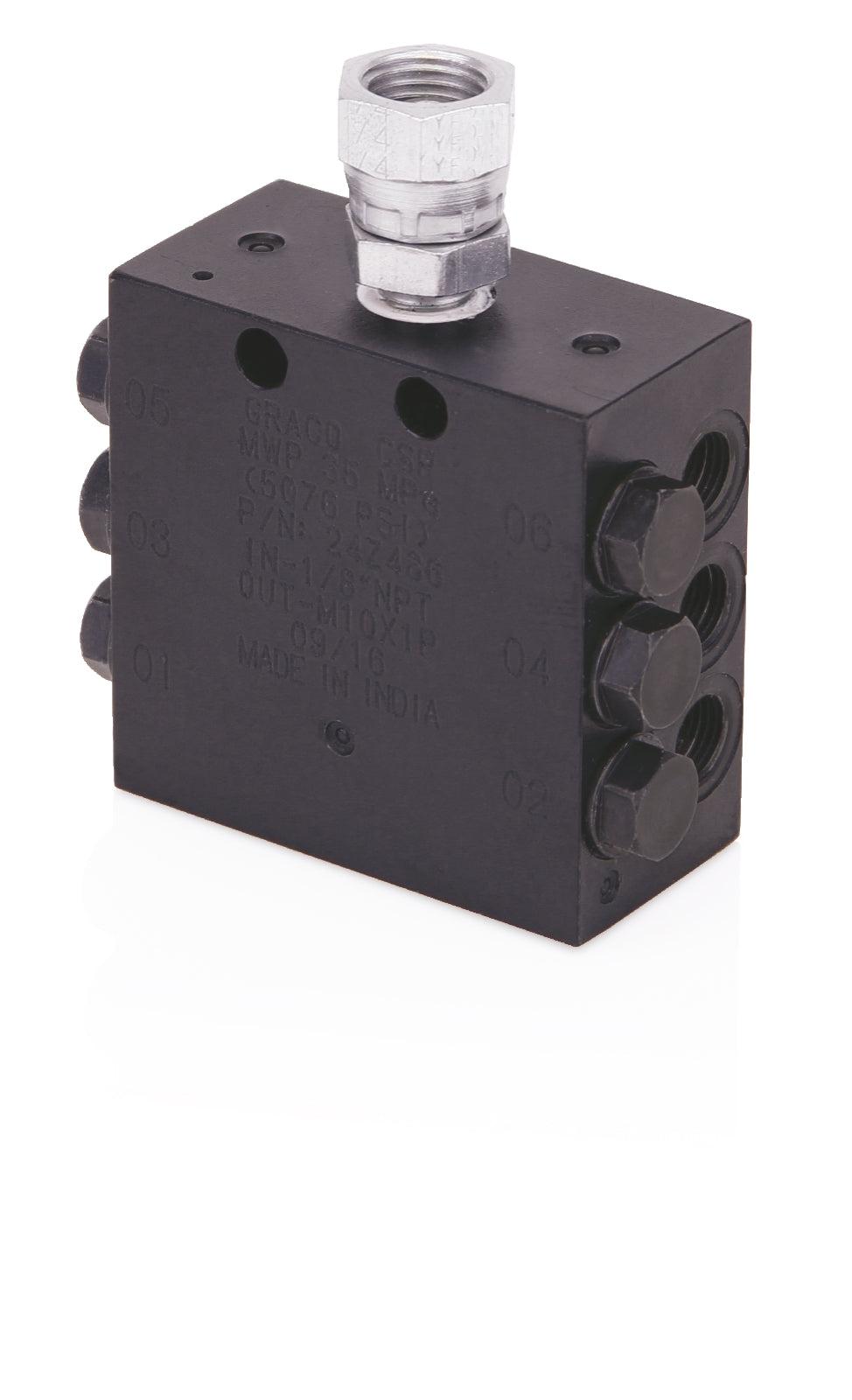

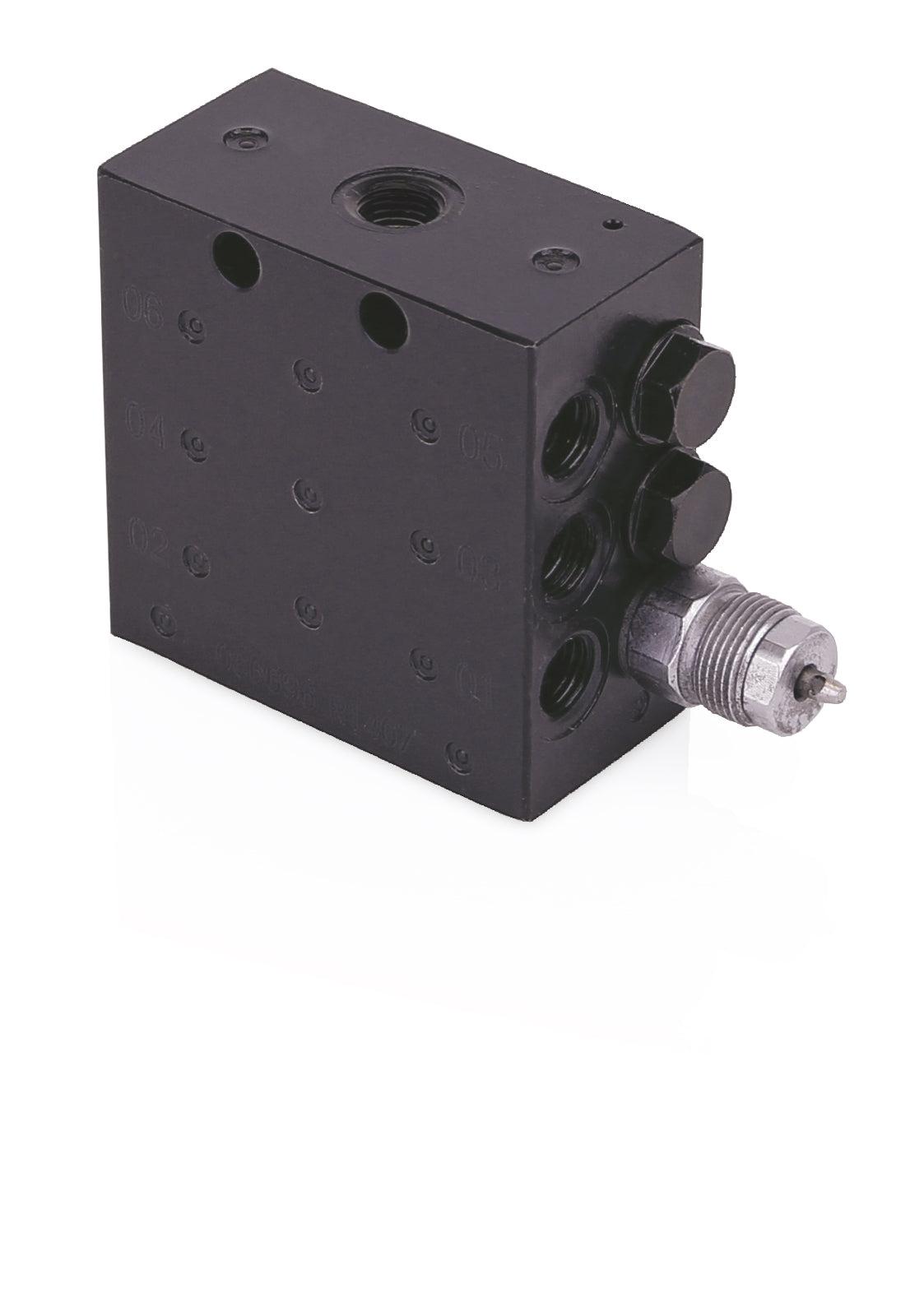

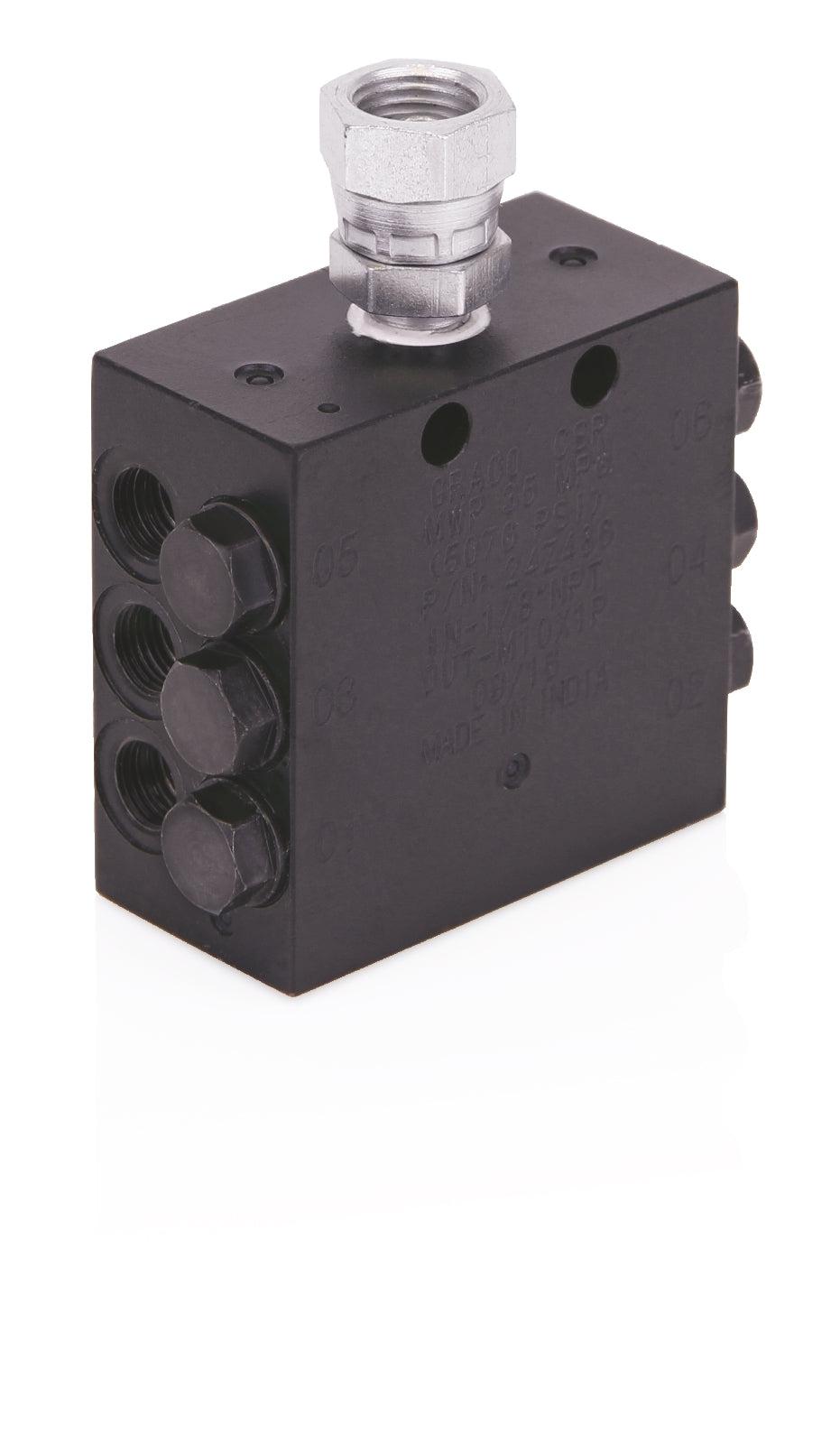

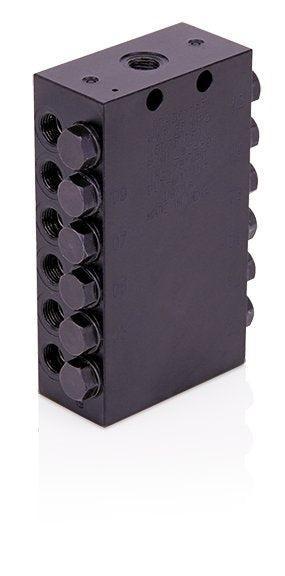

Graco CSP Divider Valve, 1/8 in. BSPP, 16 Outlets, Indicator Included
Graco CSP Divider Valve, 1/8 in. BSPP, 16 Outlets, Indicator Included
Graco CSP Divider Valve, 1/8 in. BSPP, 16 Outlets, Indicator Included
Graco CSP Divider Valve, 1/8 in. BSPP, 16 Outlets, Indicator Included
Graco CSP Divider Valve, 1/8 in. BSPP, 16 Outlets, Indicator Included

Graco CSP Divider Valve, 1/8 in. BSPP, 16 Outlets, Indicator Included

Regular price
$534.00
Sale price
$534.00
Quantity must be 1 or more


Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

  • 1/8 in. BSPP inlet
  • Space efficient design with 16 outlets, with indicator
  • Outlets can be combined to meet larger bearing needs
  • Built-in durability with Zinc Iron plating to stand up to harsh environments
  • High output pressure - maximum working pressure of 350 bar (5076 psi) for both oil and grease
UPC Product: 00755652413509
Family Code: FAMMPM
Unit of Measure: EA
Height: 0 CM   |  0 IN
Length: 0 IN   |  0 CM
Width: 0 CM   |  0 IN
Volume: 0 FT3   |  0 M3
Chargeable Weight: 3.98 LBS  | 1.81 KG

Technical Specifications

Minimum Working Pressure (bar) 15
Maximum Working Pressure (psi) 5076
Minimum Working Pressure (psi) 217.5
Inlet Thread Type BSPP
Inlet Size (in) 1/8
Number of Outlets 16
Minimum Output Volume (cm³) 0.2
Maximum Working Pressure (bar) 350
Maximum Operating Temperature (°F) 212
Cycle Indicator Cycle Indicator
Outlet Thread Type BSPP
Outlet Thread Gender Female
Minimum Working Pressure (kPa) 1500
Maximum Working Pressure (kPa) 35000
Maximum NLGI Grade #2
Material Carbon Steel
Inlet Size (mm) 3.175
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 100
Inlet Size (cm) 0.3175
Type Divider Valve
Divider Valve Series CSP
Application On-Road Vehicles, Off-Road Equipment
Model Trabon
Series CSP
Discharge Per Piston Stroke (in³) N/A
