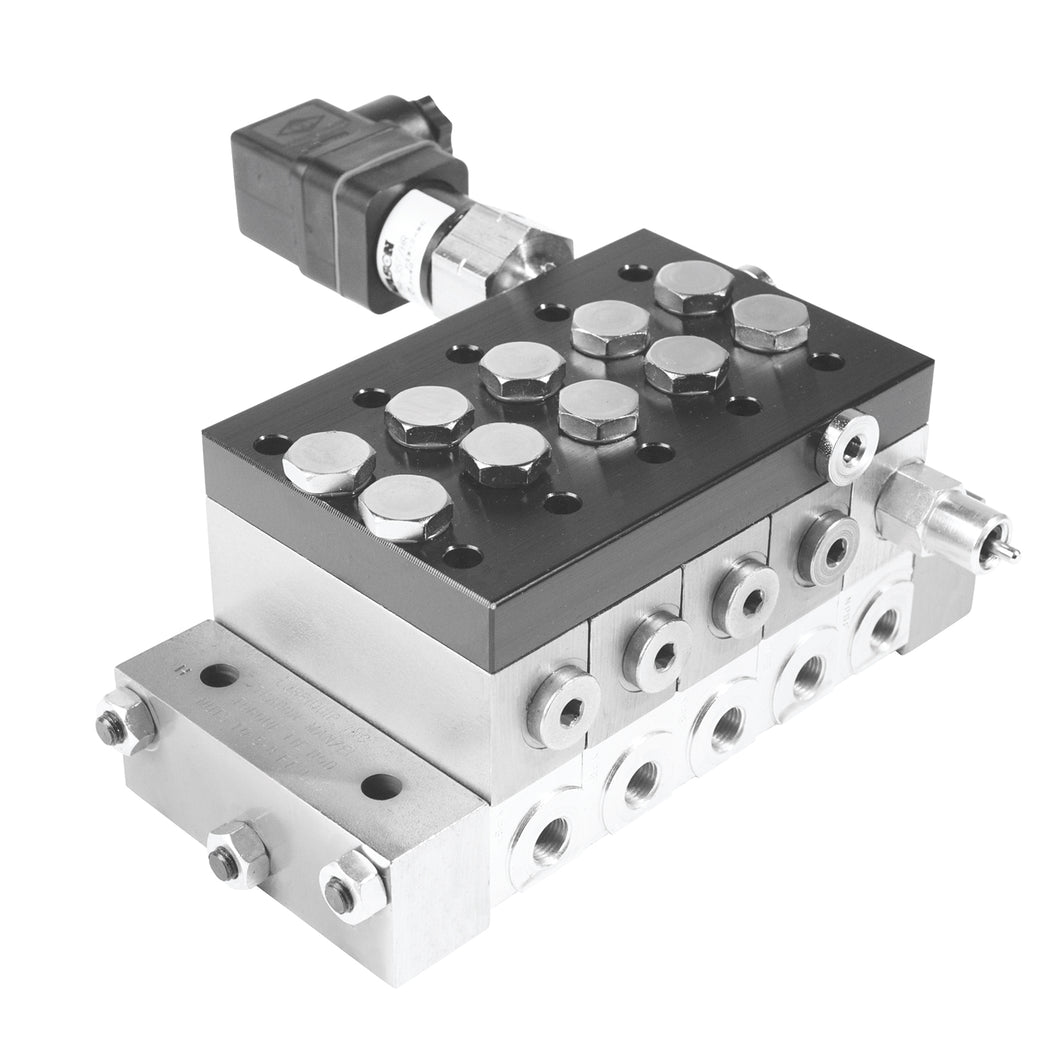

Graco Air Oil Series Valves - 5-Section Manifold Assembly

Graco Air Oil Series Valves - 5-Section Manifold Assembly

Regular price
$899.00
Sale price
$899.00
Quantity must be 1 or more


A Graco exclusive design! The Air Oil solution that detects air line or oil line faults in your system. Series progressive monitoring ensures your critical bearings are lubricated properly.

For use in steel mills, pulp and paper processing, high temperature and dirty environments.

  • Convenient manifold design mounts directly to the face of standard Graco series progressive divider valve assembly.

  • Check valve design prevents oil from being forced into the air system if lube lines get crushed or bearings get blocked.

  • Air combines with the oil after the fluid outlet check, preventing air from backing up into your source oil system.

  • Complete kits include manifold, air sensor, and check valves for easy installation.

UPC Product: 633955481442
Family Code: FAMMPM
Unit of Measure: EA
Height: 2.5 IN   |  6.35 CM
Length: 5 IN   |  12.7 CM
Width: 4 IN   |  10.16 CM
Volume: .029 FT3   |  .001 M3
Chargeable Weight: 1.72 LBS  | .78 KG

Technical Specifications

Air Inlet Size (cm) 0.3175
Air Inlet Size (in) 1/8
Air Inlet Size (mm) 3.175
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Maximum Air Pressure (bar) 17
Maximum Air Pressure (kPa) 1700
Maximum Air Pressure (psi) 250
Maximum Fluid Pressure (bar) 17
Maximum Fluid Pressure (kPa) 1700
Maximum Fluid Pressure (psi) 250
Maximum Operating Temperature (°C) 93
Maximum Operating Temperature (°F) 200
Material Aluminum
Compatible Material Oil
