Features

• Grade: Commercial
• Style: Two Stage 3-Phase (460 Volts)
• CFM: 38
• Tank Size: 80

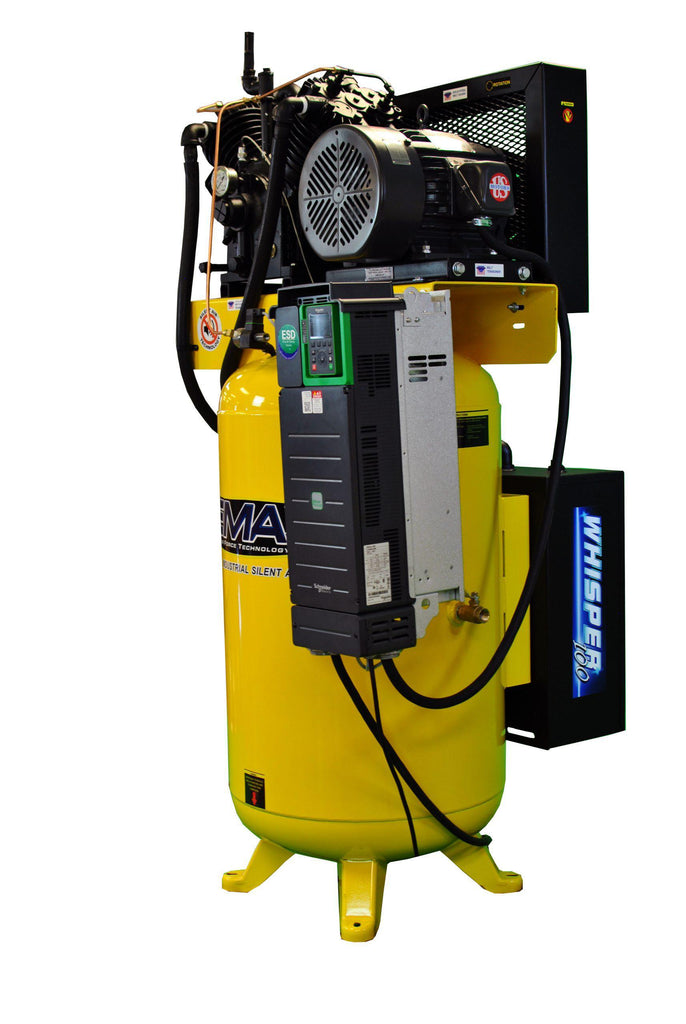

EMAX Smart Air, Energy Savings Air Compressor

• Saves up to $5,000.00 per year in energy savings
• 84% energy saving on start-ups & 40% during run cycles
• At .10 cents per kWh, unit will pay for itself in energy savings in 24 months (assuming a 5-day work week)

Variable Speed Drive (VSD) & Variable Frequency Drive (VFD) Technology

• Air demand sensor automatically changes pump speed & air output
• Soft start saves up to 7 times starting energy; 10-yr motor warranty
• Motor gradually increases RPM, keeping startup AMP's at bare minimum

Solid Cast-Iron Pressure Lubricated Pump

• Lifetime pump warranty w/ purchase of annual maintenance kit
• 275 to 800 variable speed pump RPM provides longer lifespan

Whisper Series Silencer Air System

• Reduces DB(a) rating by as much as 50%
• Average DB(a) allows for installation closer to point-of-use

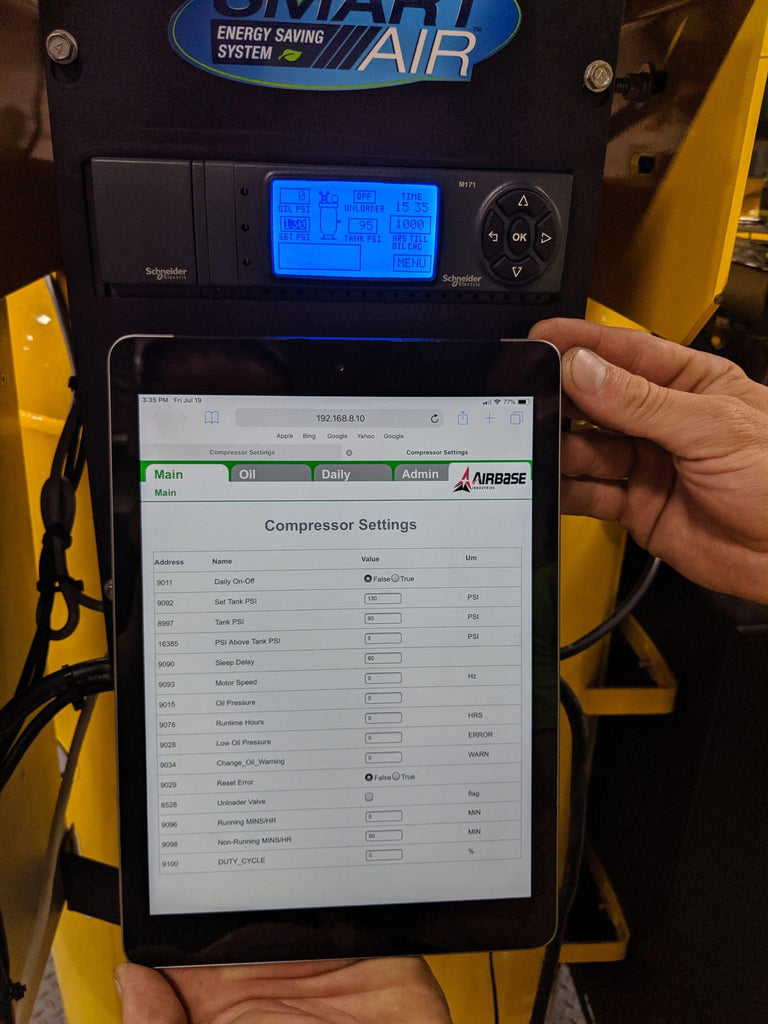

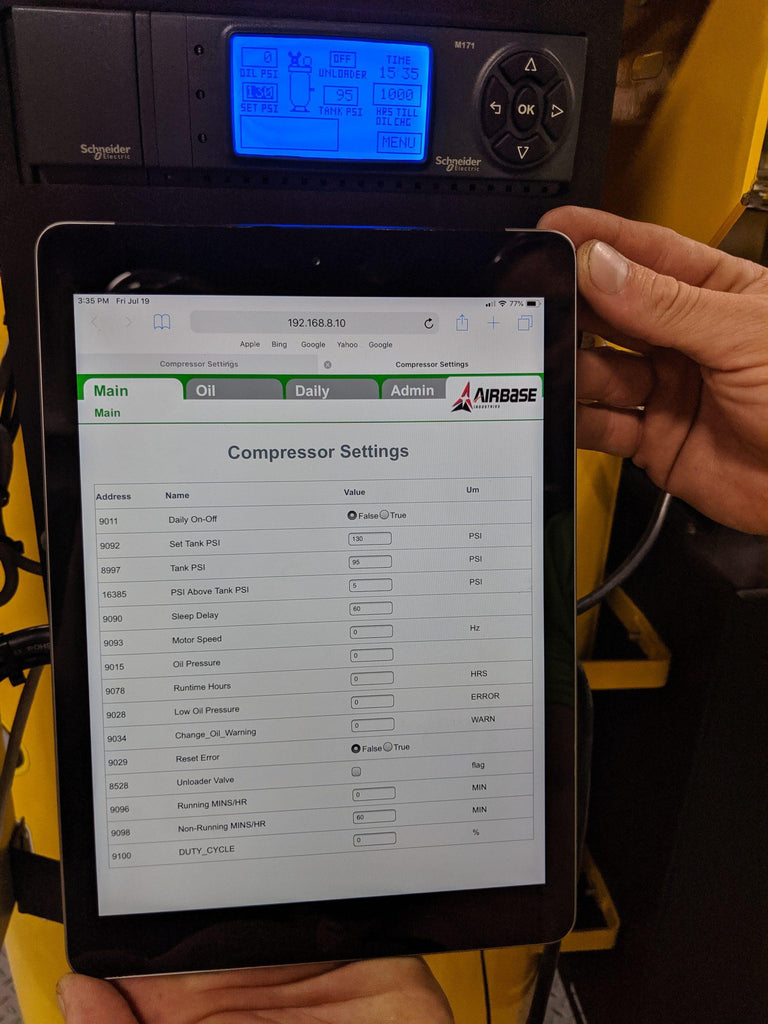

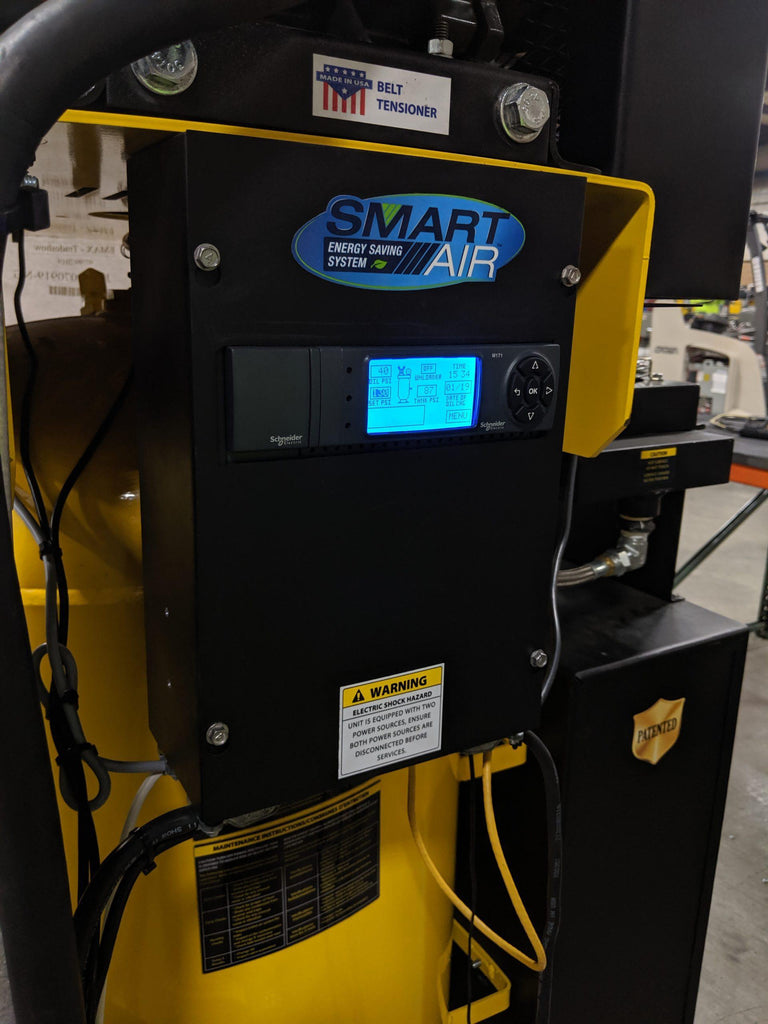

Fully Programmable PLC Touch Screen Logic Controller

• Set date, hours of operation and PSI & RPM ranges
• Digitally displays kW energy savings while unit is running
• Programmable timed starts/stops for each day of week

Automatic Shutdown, Displayed Maintenance Warnings & Aftercooler

• Indicates service maintenance for filters and oil
• Alarm shutdowns for low oil, motor overload, high/low voltage and loss of phase
• Aftercooler cools air before it goes into the tank to reduce moisture buildup

Automatic Electronic Tank Drain w/Dual Timer

• Eliminates daily maintenance and reduces moisture build-up
• Protects 80-gallon ASME air tank and air lines from rust

Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force

• FILTERKIT023 Maintenance Kit required to validate warranty coverage
