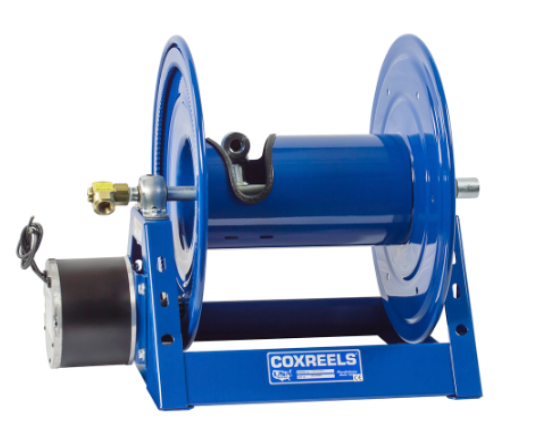

12V DC 1/2 HP EXP. Explosion Proof Reversible (1" Hose Dia. x 50')
COXREELS® 1125 Series motorized hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one-piece all-welded "A" frame base, low profile outlet riser, and open drum slot design provides a non-crimping, flat smooth hose wrap.
SWIVEL
- Machined solid brass 90º full-flow NPT swivel.
- Nickel-plated steel swivel on 1" models
- Swivel Seals: Nitrile
- Swivel Seals: AFLAS on 1" models
DESIGN & STRUCTURE
- All welded steel “A” frame construction for superior reel structure
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
- Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation.
- Long-handled locking pin to secure reel from rotation during transport or storage.
- Adjustable tension brake to prevent “free-wheeling” during operation
RETRACT
- Reliable direct gear drive on motor-driven models providing quiet & smooth retraction - No chain.
- Solid steel direct hand crank with smooth round handle.
- See Motor Options Chart.
SIGNATURE FEATURES
- Professional grade heavy-duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
- SWIVEL - Electroless nickel-plated steel 90 full-flow NPT swivel inlet.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat smooth hose wrap.
- "A" FRAME - Sturdy one-piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- OTHER FEATURES INCLUDE - long-lasting, chip-resistant and rust inhibiting CPC powder coat finish, and reliable direct gear drive for smooth & quiet retraction - NO CHAIN. Motor options available in air, electric, and hydraulic.
| I.D | 1" |
| O.D | 1 7/16" |
| LENGTH | 50' |
| HOSE | No |
| MAX PSI | 3000 |
| SHIP WEIGHT (LBS) | 81 |
| OVERALL DIMENSIONS (W) (H) (L) | 29.88"(W) 18.5"(H) 17.63"(L) |
| MOUNTING PATTERN (M) (N) | 25.94"(M) 10"(N) |
| BASE (X) (Y) | 20.38"(X) 16"(Y) |
