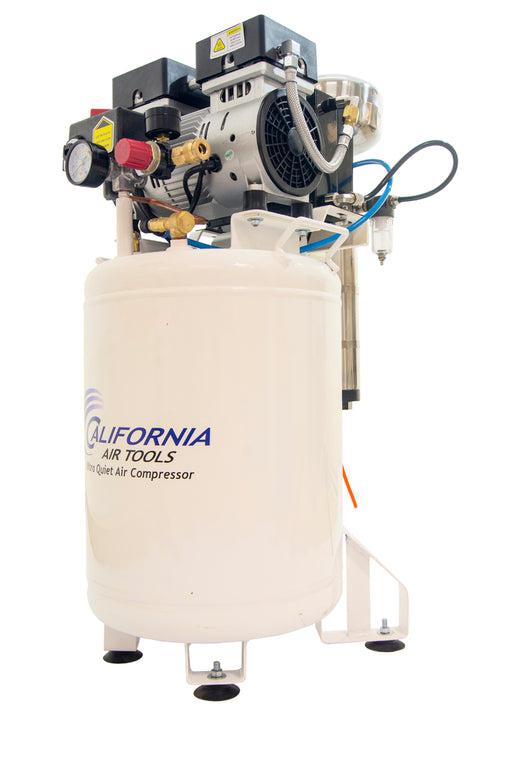

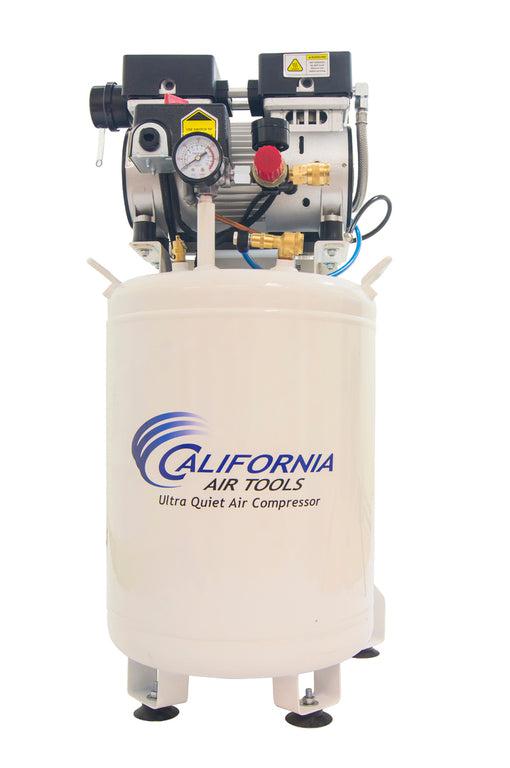

10010DCAD Ultra Quiet & Oil-Free 1.0 Hp, 10.0 Gal.w/ Air Dryer

• 1.0 HP (Running / Rated) Motor
• 10.0 Gallon Steel Tank (00 lbs)
• 3.00 CFM @ 40 PSI
• 2.20 CFM @ 90 PSI
• 125 PSI Maximum
• 60 Decibels
• Oil – Free (Dual Piston) Pump
• Two Pressure Control Gauges
• Two Universal Quick Connector
• 8.5 Amps
• “NEW” Air Drying System
• Longer Continuous Run Times
• 3000 Hours Before Service

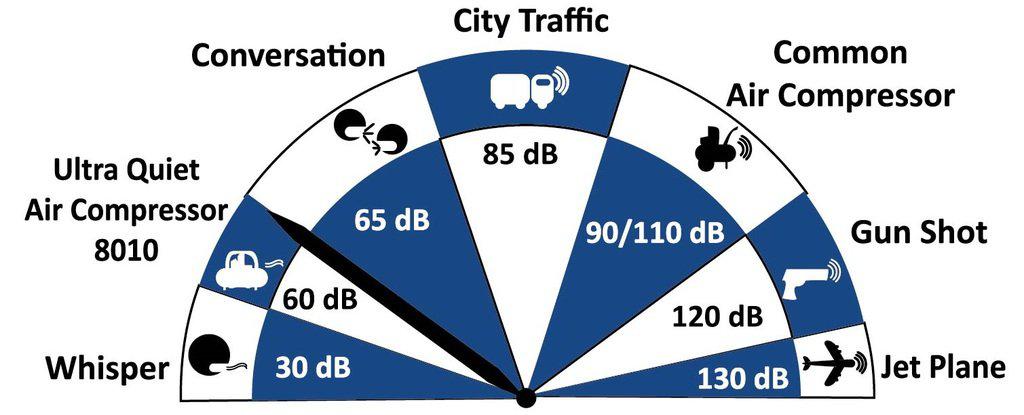

The CALIFORNIA AIR TOOLS 10010DC Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 1.0 horse power air compressors in the industry having only 60 decibels of sound.

The powerful 1.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear.

The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability.

The SP-9413 Motor/Pump is tested for a minimum pump life of 3000 hours before service, 25% more life before repair

The large 10.0 gallon steel air tank is only 75 lbs.

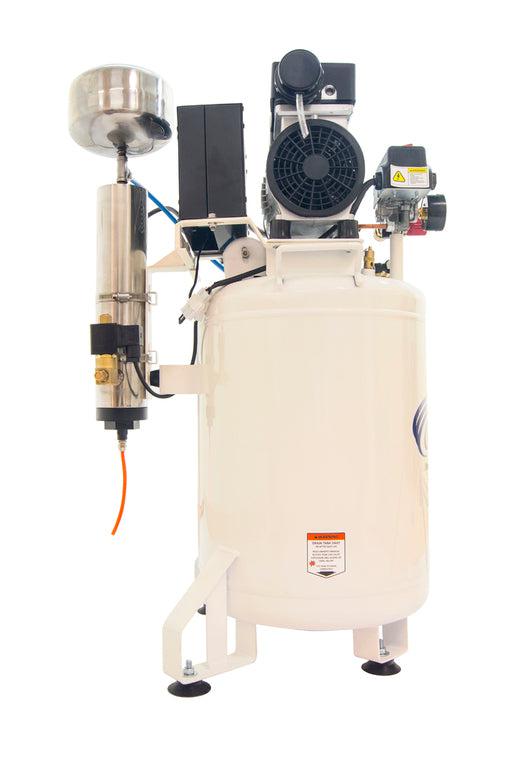

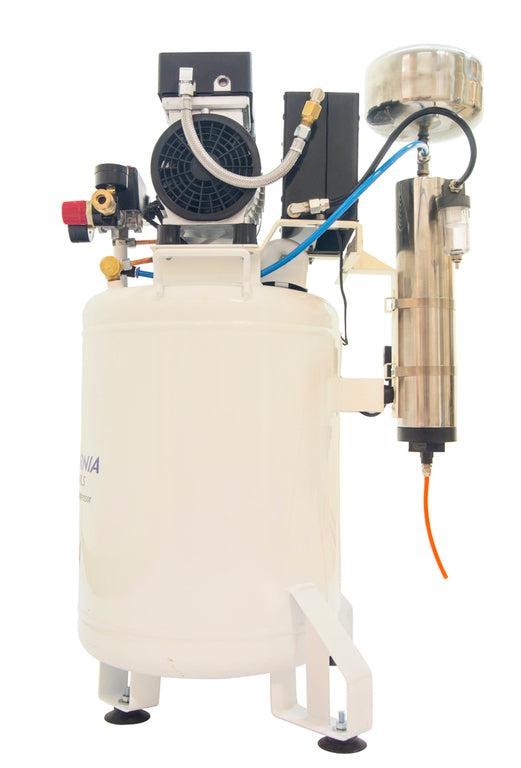

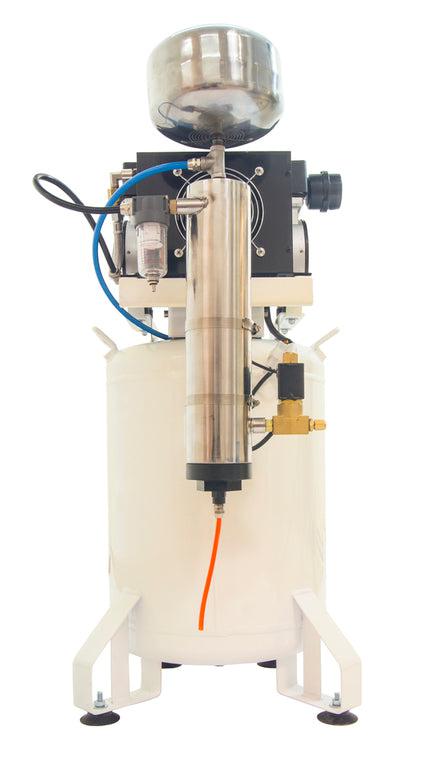

The Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.

To dry the air from the air compressor an Aftercooler and Dryer are utilized.

The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.

This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.

Features:

• Ultra Quiet - Only 60 decibels
• Oil-Free Pump – Cleaner air for better tool operation.
                              Less maintenance and Costs.
• Two pressure control gauges
• One - 1/4″ Industrial female quick connector
• Thermal Overload Protector
• 125 PSI Maximum Pressure
• Kick On Pressure 90 PSI - Kick Off Pressure 125 PSI
• 110v / 60 Hz
• Low Amp Draw - Only 8.5 Amps
• Tank fill rate from empty to full 5 minutes
• Duty Cycle - 70/30
• Maximum continuous running 30-60 min. (Depending PSI & CFM)
• L (16") x W (23") x H (32")
• 75 pounds
• Air Dryer - Includes Activated Alumina desiccant with a 4000 hour life.
  Activated Alumina is used in air prepurification (due to it's high water and carbon dioxide adsorption capacity) and adsorption of sulphur compounds.
• Aftercooler (condenser)
• Commercial Use: Refer to State & City Codes
• 1 Year Limited Warranty
• Assembled in USA with global components

The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.

The manually set timer allows you to set the time for both the frequency and duration of the draining process.
