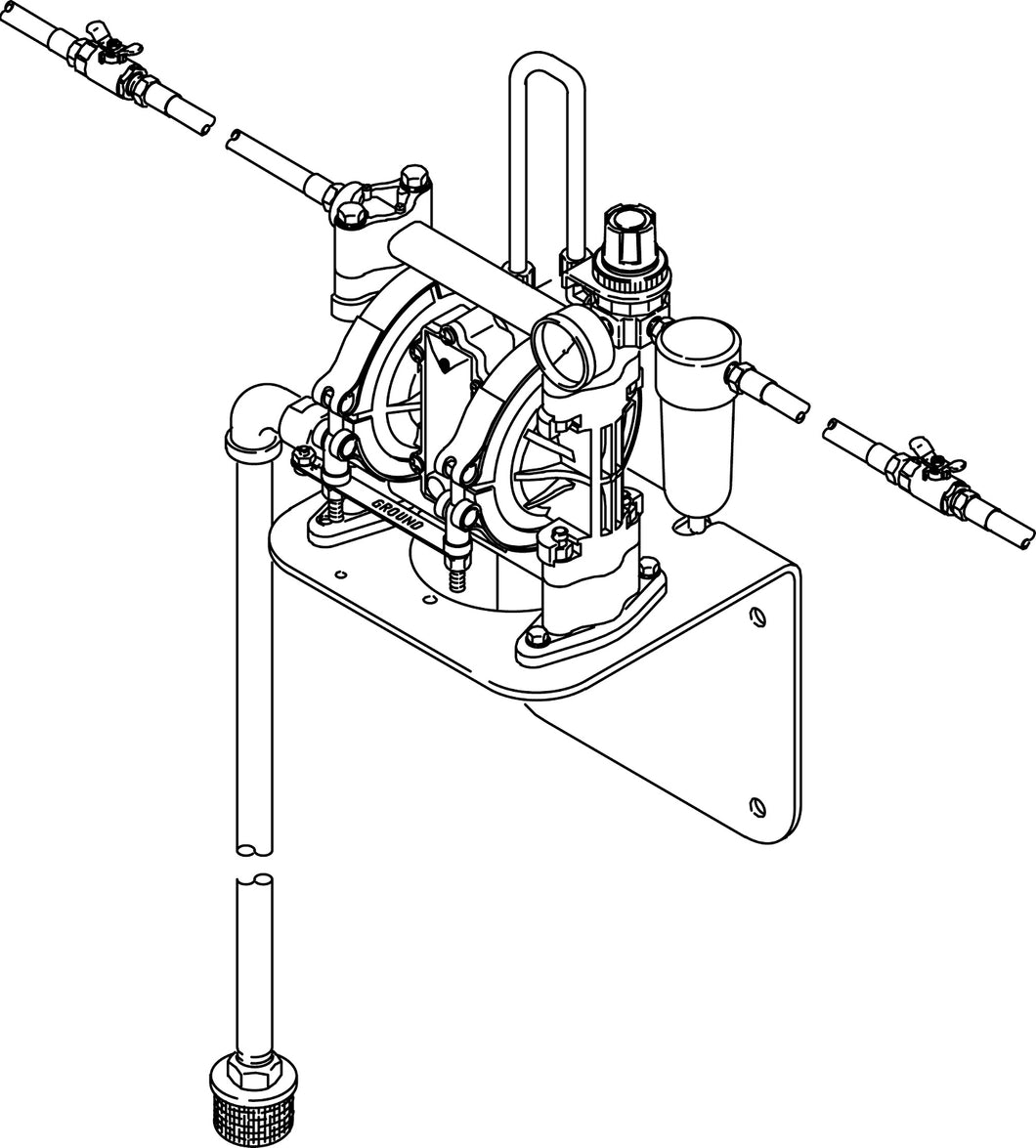

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.
Quick and easy assembly and disassembly design
Easy to service air valve and ball checks
Operates on as little as 1.4 bar, 0.14 MPa (20 psi)
Split manifold option to pump multiple fluids without mixing
Every pump is tested prior to shipping
9.52 mm (3/8 in.) end porting
Delivery up to 26.5 lpm (7 gpm)
Easy-to-service air valve and ball checks
UPC Product: 00633955044791
Family Code: FAMPDI
Unit of Measure: EA
Height:
0 IN
| 0 CM
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
16.95 LBS
| 7.69 KG
Technical Specifications
Application
Industrial
Compatible Material
Oil, Water, Antifreeze, Windshield Washer Fluid
Fluid Inlet Size (cm)
0.9525
Fluid Inlet Size (in)
3/8
Fluid Inlet Size (mm)
9.525
Fluid Inlet Thread Gender
Female
Fluid Inlet Thread Type
NPT
Fluid Outlet Size (cm)
0.9525
Fluid Outlet Size (in)
3/8
Fluid Outlet Size (mm)
9.525
Fluid Outlet Thread Gender
Female
Fluid Outlet Thread Type
NPT
For Use With
挡风玻璃溶剂和冷却剂, Windshield Wash Solvent and Coolant, Windshield Wash Solvent and Coolant, Liquide lave-glace et liquide de refroidissement, 윈드실드 창 세척 솔벤트 및 냉각제, Windschutzscheiben-Waschmittel und Kühlmittel, Oplosmiddel en koelvloeistof voor ruitenwissers, Solvente lavavetri e refrigerante
Includes
307 隔膜泵, 307 Diaphragm Pump, 307 Diaphragm Pump, Pompe à membrane 307 , 307 다이어프램 펌프, 307 Membranpumpe, 307 membraanpomp, Pompa a membrana 307, 空气软管, Air Hose, Air Hose, flexible d’air , 에어 호스, Luftschlauch, luchtslang, tubo dell'aria, 耦合流体软管, Coupled Fluid Hose, Coupled Fluid Hose, flexible à fluide couplé , 커플형 유체 호스, Gekoppelter Materialschlauch, gekoppelde vloeistofslang, tubo del fluido accoppiato, 空气过滤器, Air Filter, Air Filter, filtre à air , 에어 필터, Luftfilter, luchtfilter, filtro dell'aria, 空气压力表, Air Gauge, Air Gauge, jauge d’air , 에어 게이지, Luftmanometer, luchtmeter, manometro dell'aria, 空气管路接头, Air Line Fitting, Air Line Fitting, raccord de conduite d’air , 에어 라인, Luftleitungsanschluss, luchtlijnfitting, raccordo della linea dell'aria, 空气调节器, Air Regulator, Air Regulator, régulateur d’air, 피팅, Luftregler, luchtregelaar, regolatore dell'aria, 弯头, Elbow, Elbow, coude , 에어 레귤레이터, Winkel, kniestuk, gomito, 管, Tube, Tube, tube , 엘보, Rohr, buis, tubo, 安装支架, Mounting Bracket, Mounting Bracket, support de montage , 마운팅 브래킷, Montagehalterung, montageconsole, staffa di montaggio, 适配器, Adapter, Adapter, adaptateur , 어댑터, Adapter, adapter, adattatore, 喷嘴, Nipple, Nipple, mamelon , 니플, Nippel, nippel, nipplo, 吸料软管套件, Suction Hose Kit, Suction Hose Kit, kit de flexible d’aspiration , 흡입 호스 키트, Saugschlauchsatz, zuigslangset, kit tubo di aspirazione, 耦合 PVC 软管和滤网, Coupled PVC Hose and Mesh Strainer, Coupled PVC Hose and Mesh Strainer, flexible PVC couplé et crépine à mailles , 커플형 PVC 호스 및 메시 스트레이너, Gekoppelter PVC-Schlauch und Maschensieb, gekoppelde pvc-slang en meshfilter, filtro a rete e tubo flessibile in PVC accoppiato, 壁式支架, Wall Bracket, Wall Bracket, support mural, 벽 브래킷, Wandhalterung, muurconsole, staffa a parete
