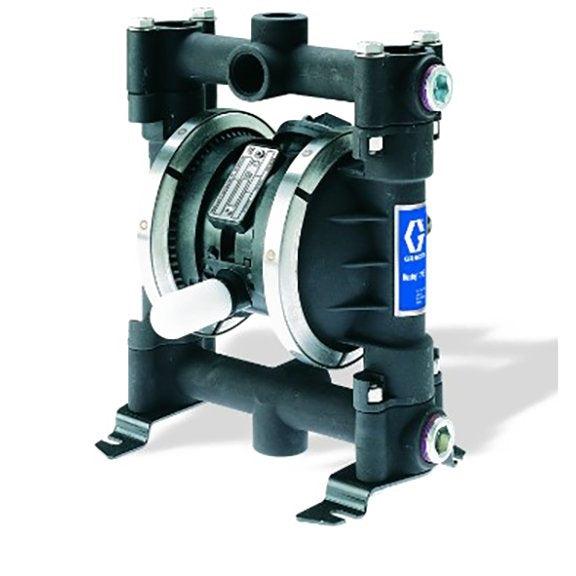

Graco Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, TPE Balls & TPE Diaphragm

Graco Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, TPE Balls & TPE Diaphragm

Regular price
$1,150.00
Sale price
$1,150.00
Quantity must be 1 or more


The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

UPC Product: 00633955902947
Family Code: FAMAOD
Unit of Measure: EA
Height: 12 IN   |  30.48 CM
Length: 10.8 IN   |  27.432 CM
Width: 21.336 CM   |  8.4 IN
Volume: .018 M3   |  .63 FT3
Chargeable Weight: 10 LBS  | 4.54 KG

Technical Specifications

Type Pneumatic Diaphragm Pump
Air Exhaust Port Size (in) 3/8
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material TPE (Hytrel)
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Diaphragm Material TPE (Hytrel)
Fluid Inlet Size (cm) 1.905
Fluid Inlet Size (in) 3/4
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.905
Fluid Outlet Size (in) 3/4
Fluid Outlet Size (mm) 19.05
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
Manifold Configuration Center Port
Manifold O-Ring Material PTFE
Material Aluminum
Maximum Air Consumption (SCFM) 28
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400
Maximum Flow Rate (GPM) 16
Maximum Flow Rate (L/min) 60.6
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°C) 107
Maximum Operating Temperature (°F) 225
Maximum Solid Size (cm) 0.2383
Maximum Solid Size (in) 0.09375
Maximum Solid Size (mm) 2.4
Minimum Operating Temperature (°C) 4
Minimum Operating Temperature (°F) 40
Model Husky
Overall Height (in) 10.43
Power Source Air
Seat Material Stainless Steel
Series 716
Standards Met ATEX, CE
Weight (lb) 8.5
Maximum Fluid Pressure (MPa) 0.7
Maximum Air Pressure (MPa) 0.7
Connection Type Threaded
diaphragm_compatible_material TPE
