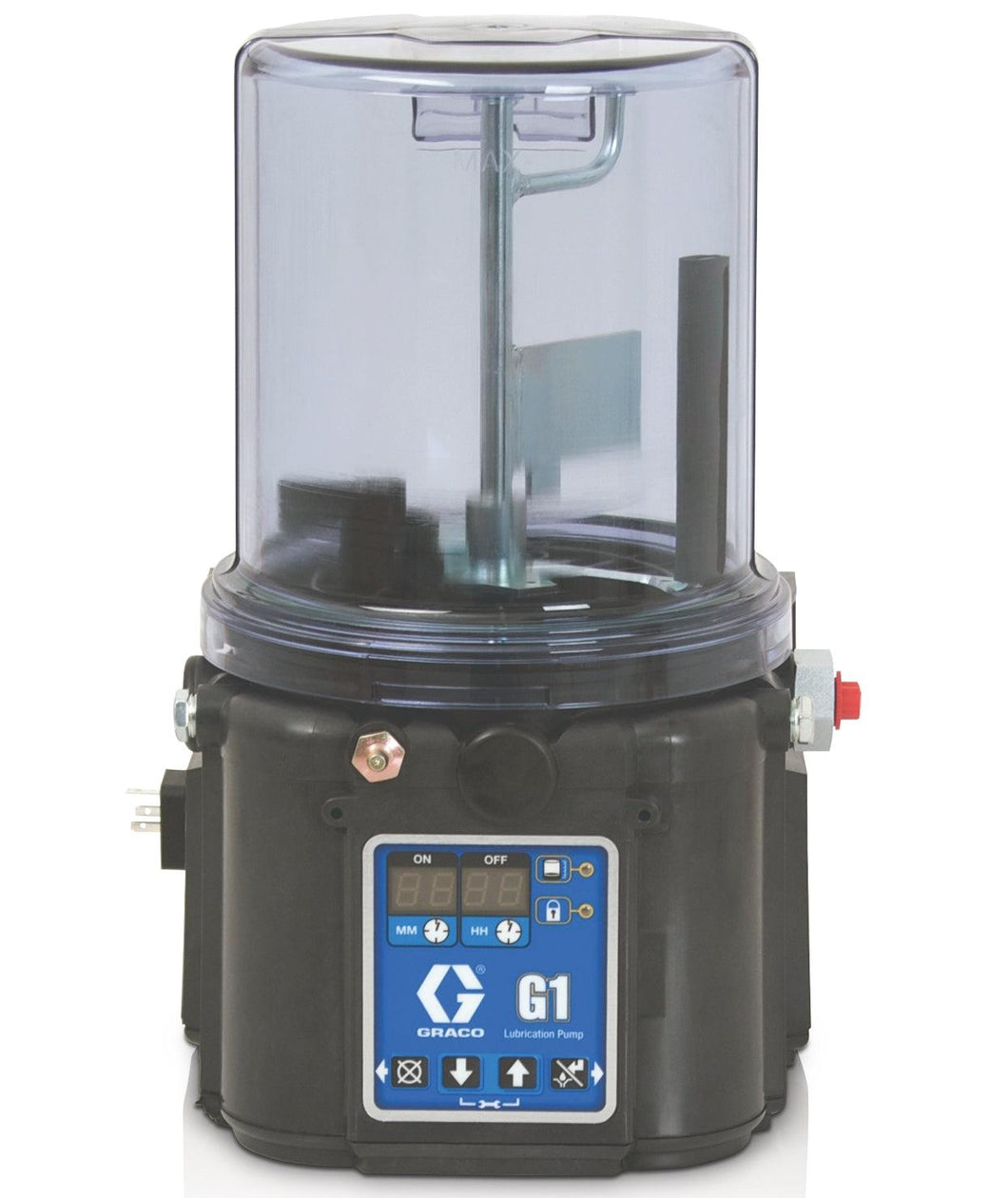

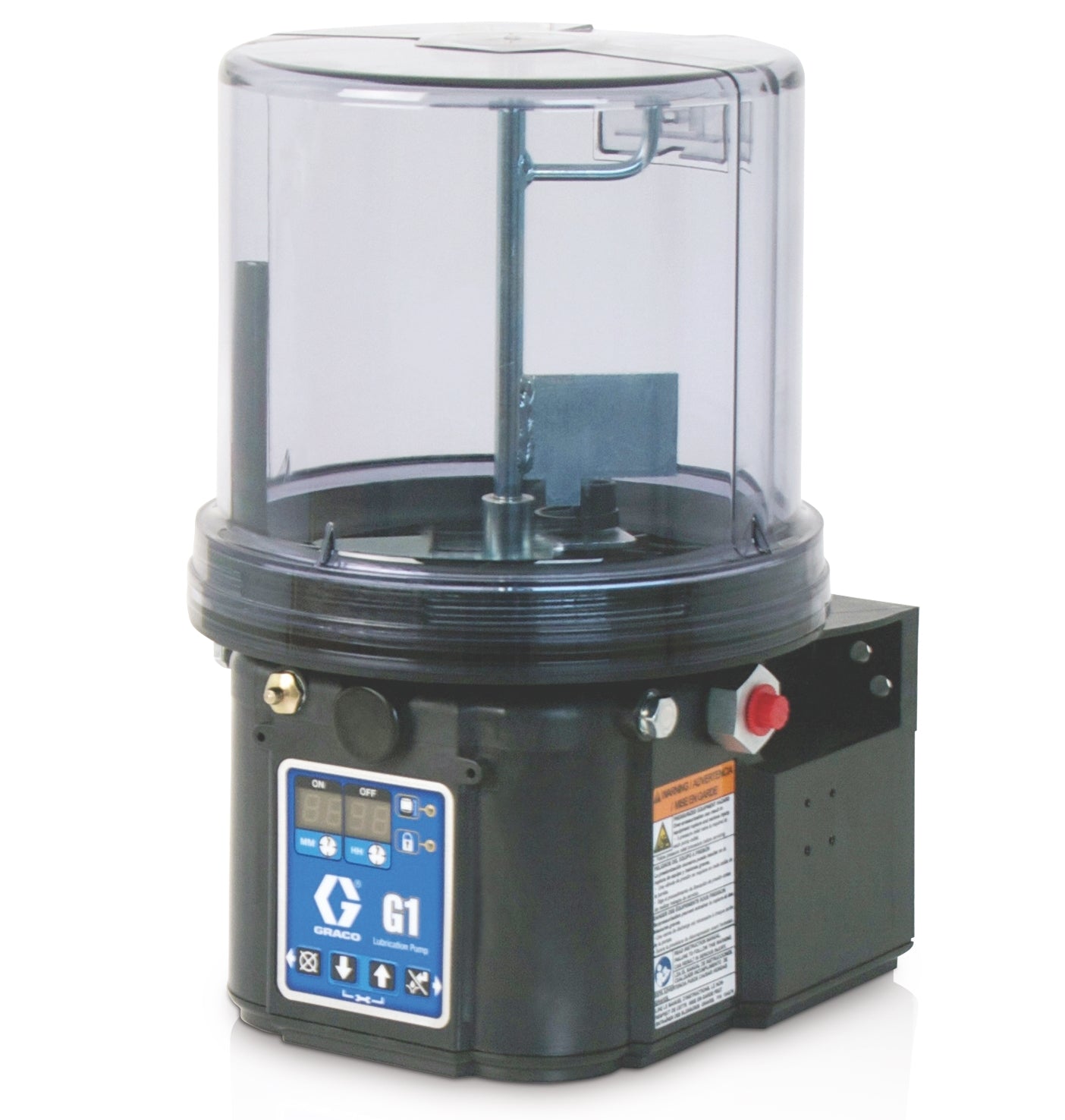

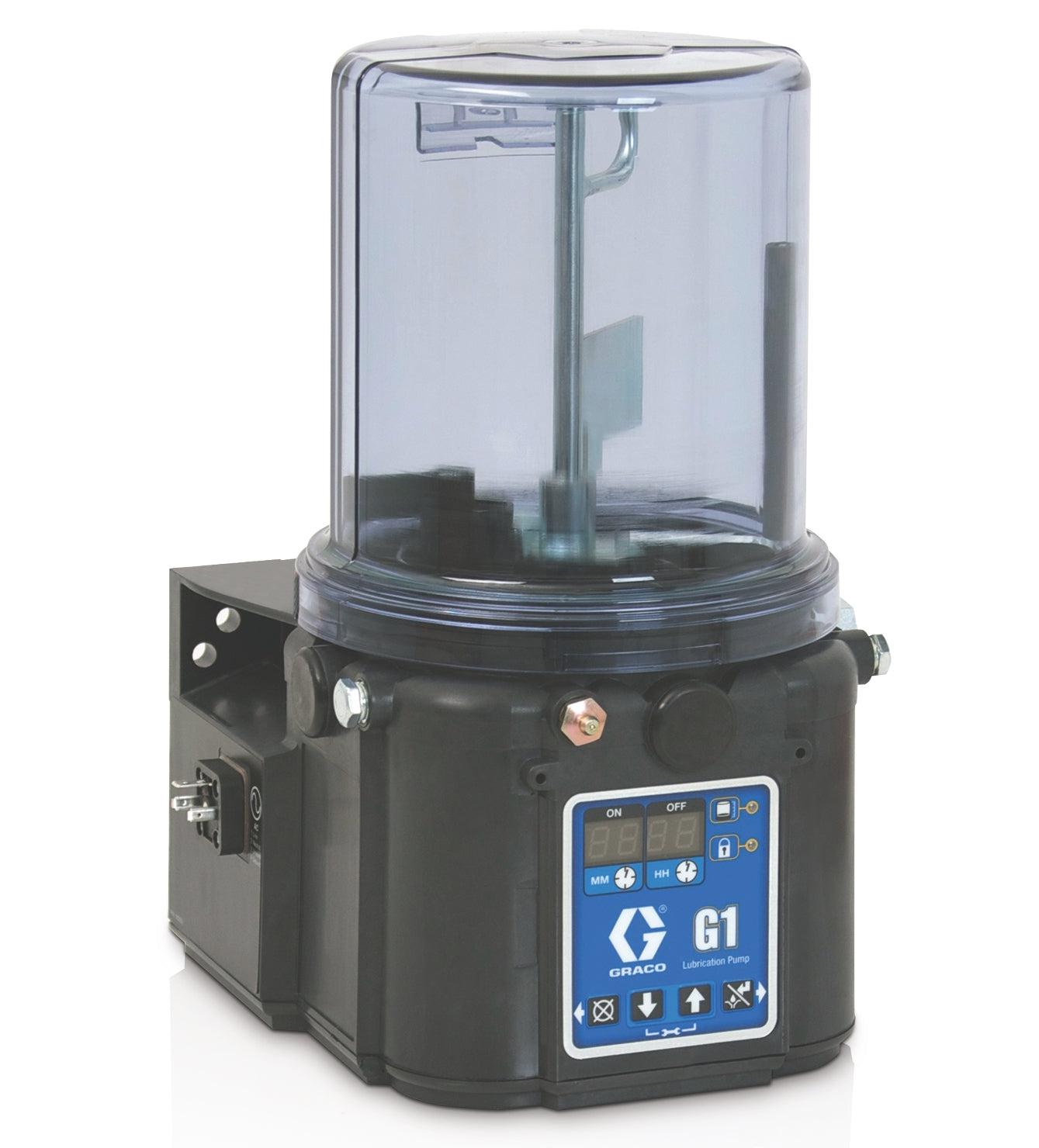

Graco 2000640 G-Mini® Oil Lubrication Pump with Controller, 24 VDC, 2 Liter
Graco 2000640 G-Mini® Oil Lubrication Pump with Controller, 24 VDC, 2 Liter
Graco 2000640 G-Mini® Oil Lubrication Pump with Controller, 24 VDC, 2 Liter

Graco 2000640 G-Mini® Oil Lubrication Pump with Controller, 24 VDC, 2 Liter

Regular price
$1,280.00
Sale price
$1,280.00
Quantity must be 1 or more


Simple solution. Sophisticated results. Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication. Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.

Automatic Lubrication for Series Progressive Metering Systems

  • G1 Plus has built-in on/off timer with optional low level feature that shuts down the pump when empty. Manual run initiates lube cycles on-demand with the option for remote control.
  • 2 liter reservoir
  • Connect to 24 VDC
  • Built-in Versatility - Available with stirring paddle and wiper arm to keep material from separating. Optional follower plate ensures grease stays level for extreme angle installations.
  • Hard Working Pump - G1 comes with one pump element installed that reliably delivers lubricant when you need it.
  • Achieve Uninterrupted Material Flow - With its advanced flow dynamics the contoured base flows lubricants directly to the pump inlet, significantly reducing stagnant areas where grease can separate.
  • Experience Our Long Life Design - Engineered offset drive design minimizes load and stress on the motor and pump element.
UPC Product: 00633955033160
Family Code: FAMMPM
Unit of Measure: EA
Height: 39.624 CM   |  15.6 IN
Length: 10.8 IN   |  27.432 CM
Width: 12 IN   |  30.48 CM
Volume: 1.17 FT3   |  .033 M3
Chargeable Weight: 5.62 KG  | 12.4 LBS

Technical Specifications

Type Electric Piston Pump
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Oil
Fluid Outlet Size (in) 0.25
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPSF
Maximum Working Pressure (bar) 351.6
Maximum Working Pressure (kPa) 35160
Maximum Working Pressure (psi) 5100
Model G1
Power Type Electric
Reservoir Size (gal) 0.528
Reservoir Size (L) 2
Series Plus
Voltage (V dc) 24
Weight (lb) 13.3
Wetted Material Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE
Compatible Metering Device Series Progressive
Control Options Plus
IP Rating IP69K
Maximum Flow Rate (ci/min) 0.25
Maximum Run Time (min) 30
Maximum Voltage (V dc) 32
Minimum cST Grade (cST) 40
Minimum Voltage (V dc) 18
Number of Pump Elements 1
Overall Depth (cm) 22.9
Overall Depth (in) 9
Overall Depth (mm) 229
Overall Height (cm) 33.7
Overall Height (in) 13.25
Overall Height (mm) 337
Overall Width (cm) 20.3
Overall Width (in) 8
Overall Width (mm) 203
Power Connection Type DIN
Voltage (V) 24 VDC
Weight (kg) 6
Maximum Working Pressure (MPa) 35.1
