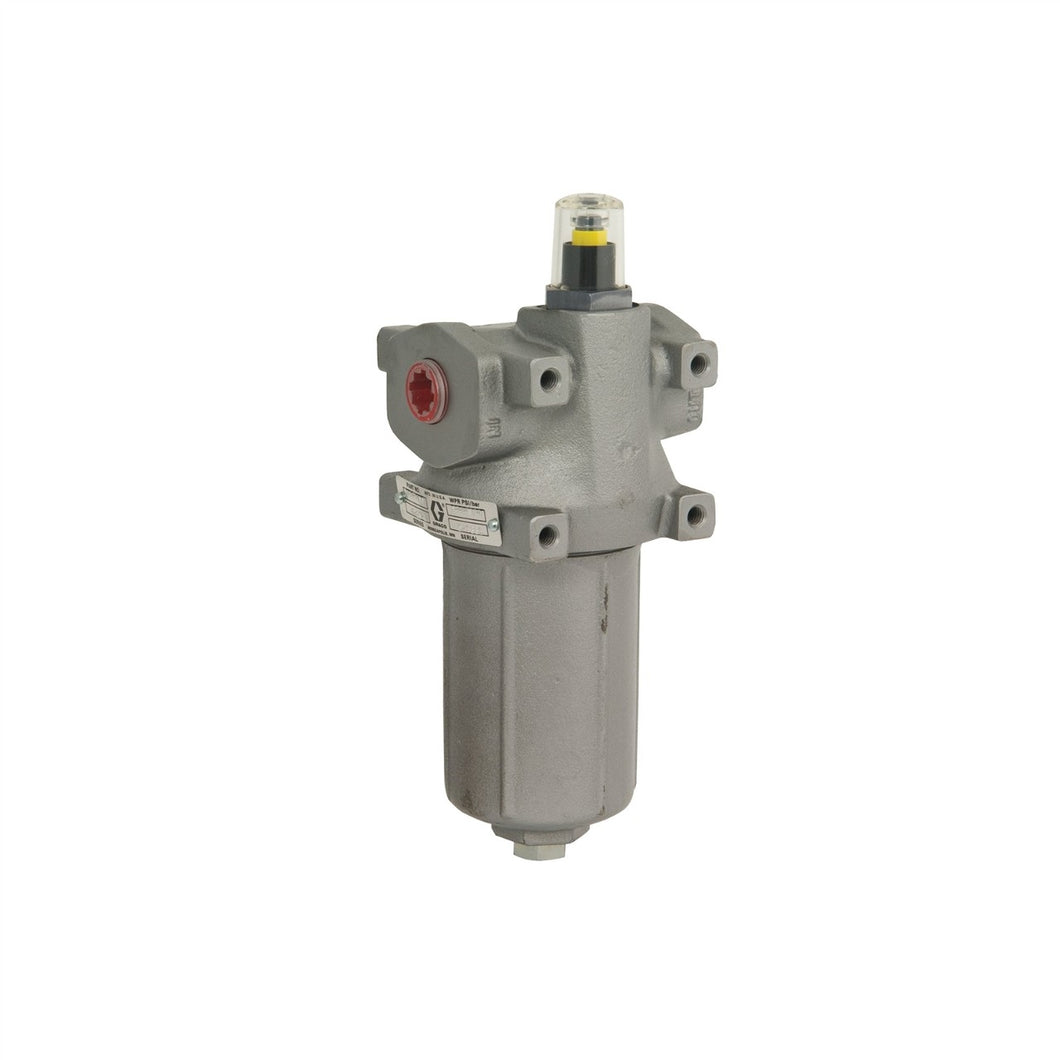

Graco 210090 High Pressure, Medium Volume, Red Alert Filter, 30 mesh (250 micron) element

Graco 210090 High Pressure, Medium Volume, Red Alert Filter, 30 mesh (250 micron) element

Regular price
$1,410.00
Sale price
$1,410.00
Quantity must be 1 or more


Filtering is your best defence against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when the fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when the filter clogs, preventing downtime.

Large flow capacity is ideal for large circulation and supply systems.

  • Red alert indicator signals filter element replacement to ensure efficient filtration
  • Integrated mounting holes make installing on frames and equipment easy
  • Bottom port for installing quick flush ball valve

    Technical Specifications

    Inlet Size (cm) 1.905
    Inlet Size (in) 3/4
    Inlet Size (mm) 19.05
    Inlet Thread Type NPT
    Material Carbon Steel
    Maximum Flow Rate (L/min) 37.9
    Maximum Working Pressure (MPa) 21
    Maximum Working Pressure (bar) 210
    Maximum Working Pressure (kPa) 21000
    Maximum Working Pressure (psi) 3000
    Outlet Size (cm) 1.905
    Outlet Size (in) 3/4
    Outlet Size (mm) 19.05
    Outlet Thread Type NPT
    Overall Depth (cm) 11.7
    Overall Depth (mm) 117
    Overall Height (cm) 29
    Overall Height (mm) 287
    Overall Width (cm) 11
    Overall Width (mm) 114
    Type Filter
    Weight (kg) 6.6
    Wetted Material Iron, Steel, Fluoroelastomer, Stainless Steel
